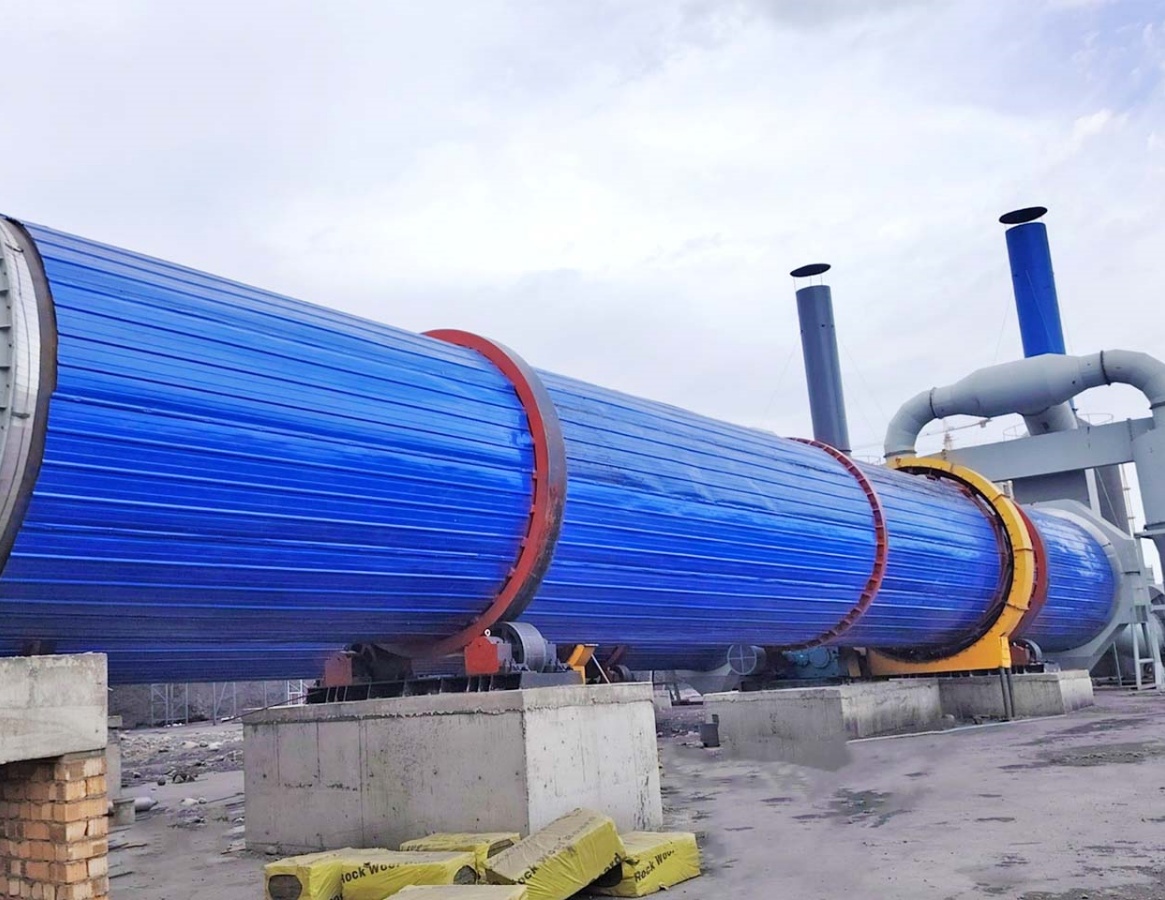

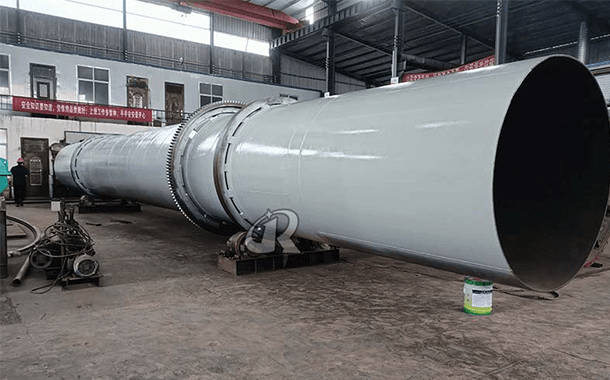

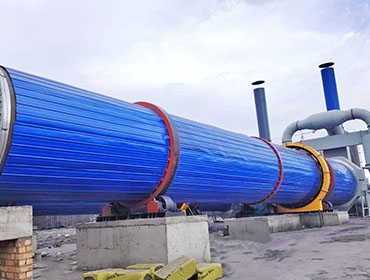

Lignite rotary dryer is mainly composed of hot blast stove, belt feeding machine, drum dryer, belt discharging machine, induced draft fan, cyclone dust collector, bag filter (or wet dust collector) and operation control system
- Capacity：3-100t/h
- Power：3-185KW
- Input moisture：30%
- Output moisture：10%(adjustable)
Product Introduction
Lignite rotary dryer is mainly composed of hot blast stove, belt feeding machine, drum dryer, belt discharging machine, induced draft fan, cyclone dust collector, bag filter (or wet dust collector) and operation control system
Applicable Material
Suitable for coal slime, coal, bean residue, wine lees, potato residue, medicinal residue, straw, grass, non-viscous mineral powder, coal powder, coke powder and ammonium sulfate, ammonium nitrate, urea, calcium magnesium phosphate fertilizer and other inorganic fertilizer.
Product Features
- 01
-
High degree of continuous automation
The industrialization, continuity and automation of coal slime drying have been realized by using a new type of non-power crushing device.
- 02
-
Upgraded version of internal structure, large processing capacity
The use of downflow mode, unique inlet and outlet device, new internal structure, can change the operation parameters according to different material properties and finished product requirements, its strong load resistance, large handling capacity, less fuel consumption, low drying cost.
- 03
-
Energy saving, environmental protection and high efficiency
Enhanced dust removal device, a variety of heat sources to meet the environmental requirements of different areas.
- 04
-
Simple structure and stable performance
Aligning tugboat design, achieve
Working Principle
The working principle of lignite rotary dryer is as follows: 1. Material guide area: the wet material mud enters this area and contacts with high-temperature hot air to quickly evaporate the water. The material is moved by the guide plate with a large lead angle, and it will be introduced into the next work area if it does not form a bond. 2. Pick-up and cleaning area: The wet material is picked up by the pick-up plate in this area to form a material curtain. When the material falls, it is easy to form the phenomenon of sticking to the drum wall. In this area, because the equipment is designed with a cleaning device, the cleaning device is very reasonable. In this process, the cleaning device also plays a role in crushing the agglomeration of material balls, thereby increasing the heat exchange area and improving the drying rate; 3. Inclined lifting plate area: the wet slime is in a loose state with low moisture content in this area, and the material has no bonding phenomenon in this area. After sufficient heat exchange, the material reaches the required moisture state and enters the discharge area; The fourth is the discharge area. The drum does not have a copying plate in this area, and the material rolls and slides to the discharge port in this area to complete the entire drying process.
Technical Parameter
| product standard（m) | Capacity（t/h) | Feed moisture（%） | Final Moisture(%) | Power(KW) |
|---|---|---|---|---|
| 0.8*8 | 0.5-3 | 30% | 15%-1% | 3KW |
| 1*10 | 1-5 | 30% | 15%-1% | 5.5KW |
| 1.2*12 | 2-8 | 30% | 15%-1% | 11KW |
| 1.6*16 | 6-10 | 30% | 15%-1% | 15KW |
| 1.8*16 | 8-15 | 30% | 15%-1% | 18.5KW |
| 2*18 | 10-20 | 30% | 15%-1% | 22KW |
| 2.2*18 | 12-25 | 30% | 15%-1% | 30KW |
| 2.4*22 | 15-30 | 30% | 15%-1% | 45KW |
| 2.6*24 | 18-35 | 30% | 15%-1% | 55KW |
| 2.8*26 | 20-40 | 30% | 15%-1% | 75KW |
| 3*28 | 25-50 | 30% | 15%-1% | 90KW |
| 3.2*28 | 30-60 | 30% | 15%-1% | 110KW |
| 3.4*30 | 35-70 | 30% | 15%-1% | 132KW |
| 3.6*32 | 40-80 | 30% | 15%-1% | 160KW |
| 3.8*32 | 50-100 | 30% | 15%-1% | 185KW |
