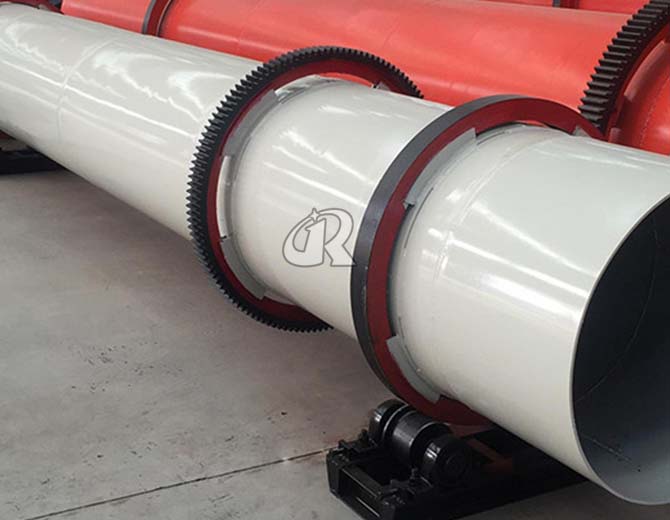

Corn cob rotary dryer it has been widely used at home and abroad in recent years. The corn cob rotary dryer can quickly dry the wet material with a moisture of 40% to a dried product with moisture less than 12%
- Capacity：0.5-10t/h
- Power：5.5-55KW
- Input moisture：40%
- Output moisture：12%(adjustable)
Product Introduction
Corn cob rotary dryer it has been widely used at home and abroad in recent years. The corn cob rotary dryer can quickly dry the wet material with a moisture of 40% to a dried product with moisture less than 12%
Applicable Material
Wood bran, sawdust, rice bran, rice husk, bamboo meal, wood meal and other materials.
Product Features
- 01
-
Good sealing and high thermal efficiency
Inlet and outlet head adopts special seal to effectively reduce heat loss.
- 02
-
Wide application range, large processing capacity
It can be dried upstream or upstream. Therefore, it can be applied to the drying of certain heat-sensitive materials. The drying treatment of granular, fibrous, powdery and other loose materials with different specific gravity, particle size and water content can achieve good dehydration and drying effect.
- 03
-
High degree of automation, continuous production
The dehydration and drying time can be adjusted according to the material properties and moisture requirements.
- 04
-
Seiko manufacturing, long service life
High quality stainless steel plate refined, wear-resistant and durable.
Working Principle
1. During the drying process of the corn cob dryer, the corn cob is first added to the silo by the forklift, and then the corn cob are evenly sent to the dryer by the belt conveyor for drying.
2.The corn cob enter the drum from the feeding device and are pushed backward by the spiral flight board. Due to the inclined placement of the dryer, on the one hand, the material flows to the rear end under the action of gravity and rotation; on the other hand, the material is repeatedly picked up by the lifting board, brought to the upper end and then continuously sprinkled down, so that the material forms a uniform curtain in the cylinder, to fully exchange heat with the hot air in the cylinder. With the material repeatedly scattered, the moisture contained in it is gradually dried, so as to achieve the purpose of drying.
3. The dried material flow into the elevator from the discharge hopper, and enter the transfer bin through the elevator. The material enters the granulator machine through the transfer bin, and is pressed into biomass particles, and then packed into bags after being cooled by the cooler. , sent to the designated place for storage.
4. The upper part of the unloading hopper is the dust during the unloading process. After being treated by the dust removal system, it can achieve the purpose of environmental protection.
Technical Parameter
| product standard（m) | Capacity（t/h) | Feed moisture（%） | Final Moisture(%) | Power(KW) |
|---|---|---|---|---|
| 0.8*8 | 0.5-3 | 40% | 12% | 3KW |
| 1*10 | 1-5 | 40% | 12% | 5.5KW |
| 1.2*12 | 2-8 | 40% | 12% | 11KW |
| 1.6*16 | 6-10 | 40% | 12% | 15KW |
| 1.8*16 | 8-15 | 40% | 12% | 18.5KW |
| 2*18 | 10-20 | 40% | 12% | 22KW |
| 2.2*18 | 12-25 | 40% | 12% | 30KW |
| 2.4*22 | 15-30 | 40% | 12% | 45KW |
