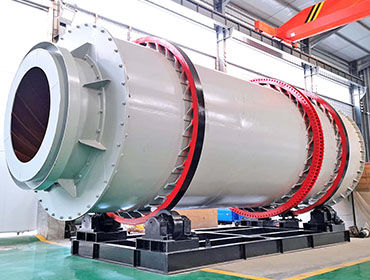

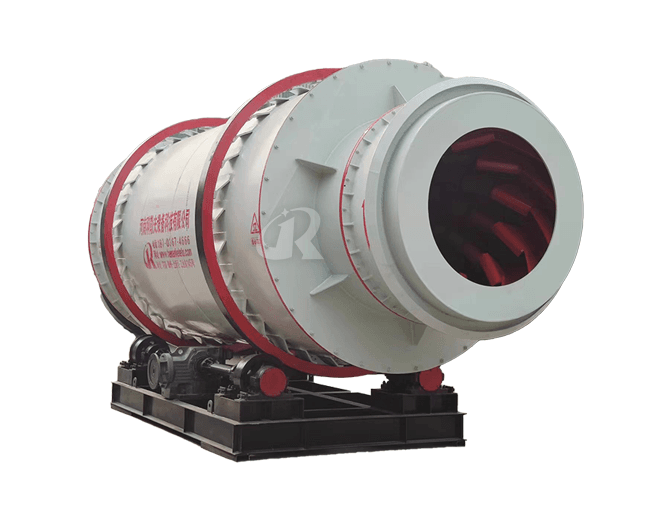

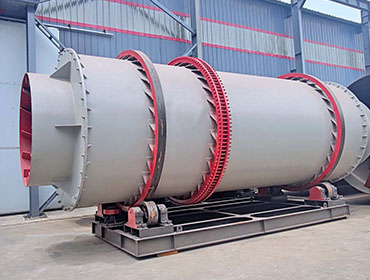

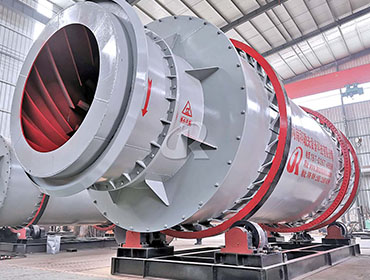

Petroleum Coke Rotary Dryer
Petroleum coke rotary dryers which have a large processing capacity and a small footprint. The heating time of the wet material is extended and the heat consumption is reduced, the drying of one ton of petroleum coke has high production efficiency and low cost.
- Output：8-90t/h
- Power：4-75KW
- Input moisture：20%
- Output moisture：1%(adjustable)
Product Introduction
Petroleum coke rotary dryers which have a large processing capacity and a small footprint. The heating time of the wet material is extended and the heat consumption is reduced, the drying of one ton of petroleum coke has high production efficiency and low cost.
Applicable Material
Ore slime, peat, sludge, raw coal, flotation cleaned coal, paste coal, mixed cleaned coal, blast furnace slag, coking and other secondary coal slime.
Product Features
- 01
-
High degree of continuous automation
The industrialization, continuity and automation of coal slime drying have been realized by using a new type of non-power crushing device.
- 02
-
Upgraded version of internal structure, large processing capacity
The use of downflow mode, unique inlet and outlet device, new internal structure, can change the operation parameters according to different material properties and finished product requirements, its strong load resistance, large handling capacity, less fuel consumption, low drying cost.
- 03
-
Energy saving, environmental protection and high efficiency
Enhanced dust removal device, a variety of heat sources to meet the environmental requirements of different areas.
- 04
-
Simple structure and stable performance
Aligning tugboat design, achieve
Working Principle
adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the dryer is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.
Technical Parameter
| specifications and models | Handling capacity drying sand（t/h) | finished product Moisture（%） | Power(KW) |
| KLF-TH1216 | 1-3 | ＜2±1 | 4 |
| KLF-TH1630 | 3-5 | ＜2±1 | 4 |
| KLF-TH2240 | 8-10 | ＜2±1 | 4 |
| KLF-TH2460 | 10-15 | ＜2±1 | 7.5 |
| KLF-TH2660 | 15-20 | ＜2±1 | 15 |
| KLF-TH2870 | 25-30 | ＜2±1 | 18.5 |
| KLF-TH3080 | 30-40 | ＜2±1 | 22 |
| KLF-TH3290 | 40-50 | ＜2±1 | 45 |
| KLF-TH3390 | 50-60 | ＜2±1 | 55 |
| KLF-TH3610 | 70-80 | ＜2±1 | 75 |
| The above parameters are for reference only. For more details, please contact customer service | |||
