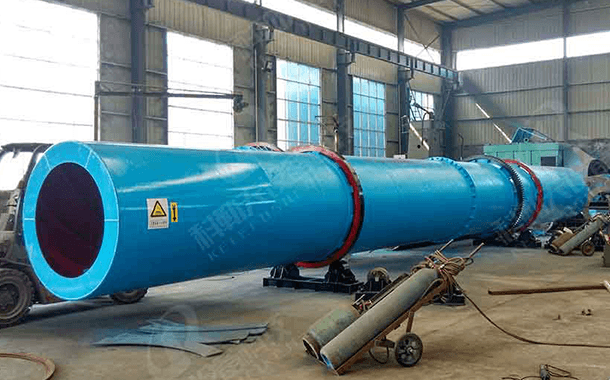

Chicken manure dryer is a low fuel-consumption and high efficiency of drying equipment. The Dryer is suitable for large, middle and small scale chicken farm and quite developed livestock breeding area, which is one of the extension programs of China Spark Plan, and recommended products of Chinese environmental administration. It can be used to dry the material with a moisture content around 60% to a final moisture content below 13%.
- Input moisture：60%
- Output moisture：15%(adjustable)
- Capacity：0.5-15T/H
- Power：3-50kw
Product Introduction
Chicken manure dryer is a low fuel-consumption and high efficiency of drying equipment. The Dryer is suitable for large, middle and small scale chicken farm and quite developed livestock breeding area, which is one of the extension programs of China Spark Plan, and recommended products of Chinese environmental administration. It can be used to dry the material with a moisture content around 60% to a final moisture content below 13%.
Applicable Material
Our dryer is also suitable for cow dung, feces organic fertilizer, sludge, bean dregs, starch residue, sauce residue, sprayed corn kernels, cassava residue, beer distiller's grains, lees, straw, pasture and other 50-85% moisture content of material Drying
Product Features
- 01
-
Good sealing and high thermal efficiency
Inlet and outlet head adopts special seal to effectively reduce heat loss.
- 02
-
Wide application range, large processing capacity
It can be dried upstream or upstream. Therefore, it can be applied to the drying of certain heat-sensitive materials. The drying treatment of granular, fibrous, powdery and other loose materials with different specific gravity, particle size and water content can achieve good dehydration and drying effect.
- 03
-
High degree of automation, continuous production
The dehydration and drying time can be adjusted according to the material properties and moisture requirements.
- 04
-
Seiko manufacturing, long service life
High quality stainless steel plate refined, wear-resistant and durable.

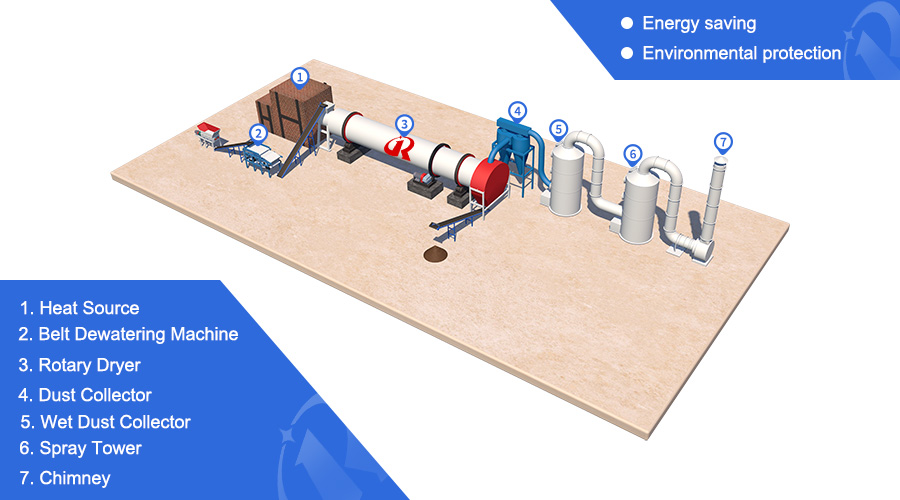

Working Principle
1.The complete set of chicken manure dryer mainly is composed of the drum dryer, feed spiral, output spiral, pipeline,burning furnace, dust collector, spray tower，airlock, air induced fan, electric control cabinet and other components.
2.Humidity materials are conveyed from the feed screw directly into the dryer drum, raised by the drum wall panels repeatedly, and scattered by the crushing blow dispersion devices. Materials and the negative high-temp media are combined sufficiently to complete heat and mass transfer process. As the result of the drum wind angle and the induced air, the feed materials move slowly, and discharged from the spiral after drying, the exhaust gas handled by the dust precipitator, venting to the atmosphere.
3.The chicken manure has a lot of moisture. If it is equipped with a pulse bag filter, it will seriously stick to the filter bag, resulting in poor ventilation, unable to produce normally, or even shut down. The dust removal system of this scheme is equipped with an independent cyclone dust collector, spray washing, deodorization and purification device, supplemented by a settling circulating pool to ensure safe and environmentally friendly emissions in the production workshop.
Technical Parameter
| Product Standard（m) | Capacity（t/h) | Feed moisture（%） | Final Moisture(%) | Power(KW) |
|---|---|---|---|---|
| 0.8*8 | 0.5-3 | 60% | 15% | 3KW |
| 1*10 | 1-5 | 60% | 15% | 5.5KW |
| 1.2*12 | 2-8 | 60% | 15% | 11KW |
| 1.6*16 | 6-10 | 60% | 15% | 15KW |
| 1.8*16 | 8-15 | 60% | 15% | 18.5KW |
| 2*18 | 10-20 | 60% | 15% | 22KW |
| 2.2*18 | 12-25 | 60% | 15% | 30KW |
| 2.4*22 | 15-30 | 60% | 15% | 45KW |
| 2.6*24 | 18-35 | 60% | 15% | 55KW |
