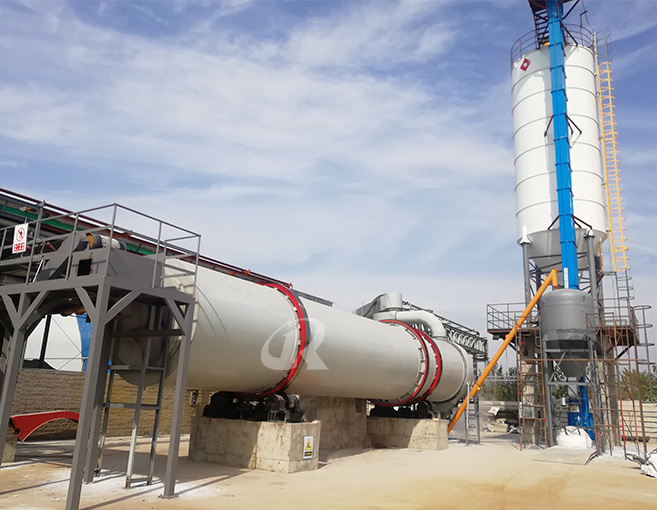

![Single Cylinder Rotary Dryer Single Cylinder Rotary Dryer](/uploads/20240401/144d5142a677507e6a35beea6fc4b2b4.jpg)
Single cylinder rotary dryer is traditional and reliable drying equipment, the material will be lifted up and fallen down by the lifting plates inside of the cylinder while the cylinder is rotating, the moisture in the material is continuously evaporated when the material contacts with the hot wind inside of the cylinder, to achieve the purpose of drying materials
![Single Cylinder Rotary Dryer - 0 Single Cylinder Rotary Dryer - 0](/uploads/20240401/144d5142a677507e6a35beea6fc4b2b4.jpg)
![Single Cylinder Rotary Dryer - 1 Single Cylinder Rotary Dryer - 1](/uploads/20230531/e9f161258c12a625351c80311ea05864.jpg)

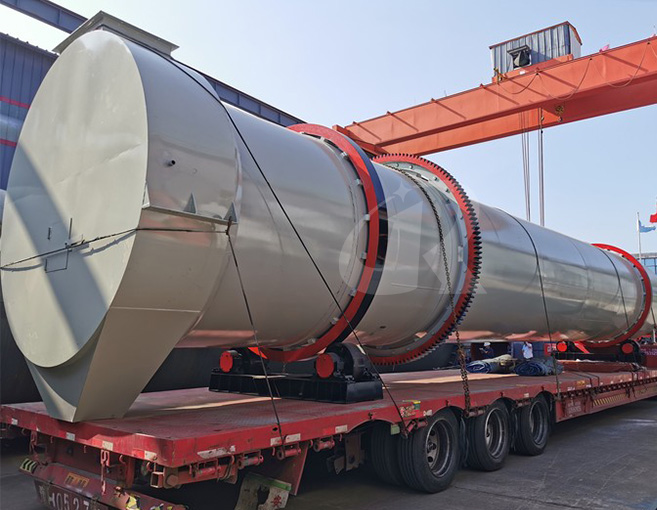

![Single Cylinder Rotary Dryer - 2 Single Cylinder Rotary Dryer - 2](/uploads/20240401/07710da90dc2944cffcb5eabeff2985d.jpg)

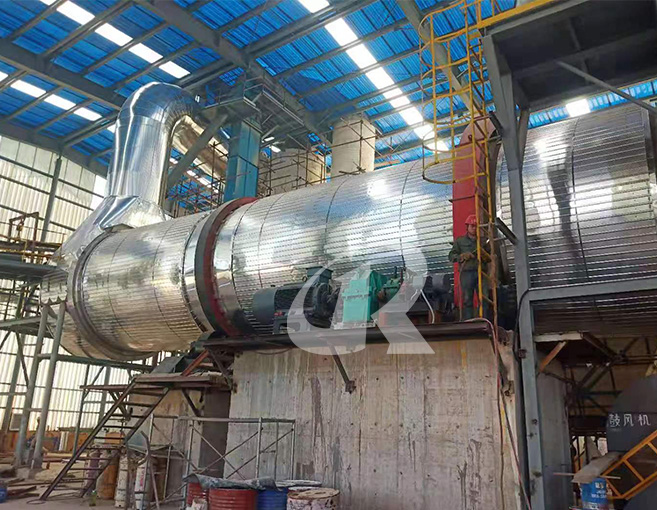

![Single Cylinder Rotary Dryer - 3 Single Cylinder Rotary Dryer - 3](/uploads/20240401/1450df0abf86a6ae1eed1666546458e4.jpg)
- Capacity:0.5-100t/h
- Power:3-55KW
- Input moisture:60%
- Output moisture:12%(adjustable)
Product Introduction
Single cylinder rotary dryer is traditional and reliable drying equipment, the material will be lifted up and fallen down by the lifting plates inside of the cylinder while the cylinder is rotating, the moisture in the material is continuously evaporated when the material contacts with the hot wind inside of the cylinder, to achieve the purpose of drying materials
Applicable Material
The heat sources of single-cylinder dryers are diverse and can be selected according to different application scenarios and material characteristics. Common heat source types include ordinary hot air, gas, electric heating, steam, biomass fuel, coal, etc.
![Single Cylinder Rotary Dryer Single Cylinder Rotary Dryer](/uploads/20231214/b7293eb757864ed455acc60f54928c94.jpg )
Single cylinder dryers have a wide range of applications and can handle a variety of materials. The following are some common single-cylinder drying materials:
Building materials industry: such as slag, river sand, clay, coal powder, blast furnace slag, clay, limestone, sand, quartz stone, etc.
Ore dressing: various metal concentrates, waste residues, tailings and non-heat-sensitive materials.
Coal industry: coal slime, raw coal, flotation clean coal, mixed clean coal, etc.
Other materials: such as sludge, manure (such as chicken manure, cow manure, pig manure), pulp, gypsum, fly ash, sawdust, wood chips, oil palm silk, wine troughs, etc.
The single-cylinder dryer can process these materials through its efficient drying function, and according to the requirements of different industries for the final moisture content of the dried materials, the moisture content of the dried materials can reach predetermined standards. In addition, the operation of the equipment is simple and reliable, making the single-cylinder dryer widely used in many industries.
![Single Cylinder Rotary Dryer Single Cylinder Rotary Dryer](/uploads/20240401/e3208fb440304649e6e8eff4692e5bbd.png)
Product Features
- 01
-
High quality sheet, wear and durable
The dryer barrel is made of wear-resistant manganese plate, which has the characteristics of high hardness and high toughness; and its wear resistance is higher than other materials.
- 02
-
Upgraded version of internal structure, High thermal efficiency
The combination of the spiral guide plate and the new lifting plate increases the fluidity and heat conduction of the material, allowing the material to enter the drying barrel and form a material curtain, which is more adaptable to the moisture and viscosity of the material.
- 03
-
Energy saving, environmental protection and high efficiency
Enhanced dust removal device, a variety of heat sources to meet the environmental requirements of different areas.
- 04
-
Simple structure and stable performance
Adopting a new transmission system and upgraded reducer, it has strong power and more stable operation.Excellent structure, simple, stable operation, high degree of mechanization, large production capacity, continuous operation.
Working Principle
![Single Cylinder Rotary Dryer Single Cylinder Rotary Dryer](/uploads/20230830/c7d9c0fd0c6341321ca4ed2546c3cc8a.jpg)
1.The wet materials enter the dryer through the belt conveyor, are dried and dehydrated, and then discharged from the discharge port, and then transferred to the material warehouse for storage by conveying equipment.
2.The high-temperature hot air generated by the combustion of the heat source is the drying heat source of the entire drying system. It fully contacts the wet materials that generate the material curtain in the dryer, and dries and dehydrates the wet materials through transfer, convection and exchange.
3.Each section is connected by lifting conveyors and sealed pipelines. The dust generated during the production process is purified by dry cyclone dust collector and pulse bag dust collector to ensure that there is no dust emission in the production workshop and meet environmental emission requirements. The system adopts frequency conversion cabinet control to meet process and production needs.
4.The reasonable structural design of the supporting wheel and the diversified lubrication methods make the supporting wheel less prone to wear and shaft breakage, shorten the replacement cycle, and extend the service life of the supporting wheel.
5.The dryer system has good sealing performance,Inlet and outlet head adopts special seal to effectively reduce heat loss.
6.We accept customization of dryers made of different materials, such as carbon steel, stainless steel, special alloys, etc. Selection of dryer base, dust removal equipment, feeding and discharging equipment, and heat source equipment.
7.A variety of heat source equipment, you can choose the most suitable one according to customer conditions,The system is equipped with a PLC system and a video monitoring system, with a high degree of automation and simple operation.
8.Provide product quality assurance, with CE IOS certification.
Technical Parameter
Product Standard(M) | Capacity(T/H) | Feed Moisture(%) | Final Moisture(%) | Power(KW) |
---|---|---|---|---|
0.8*8 | 0.5-3 | 50-30% | 15%-1% | 3KW |
1*10 | 1-5 | 50-30% | 15%-1% | 5.5KW |
1.2*12 | 2-8 | 50-30% | 15%-1% | 11KW |
1.6*16 | 6-10 | 50-30% | 15%-1% | 15KW |
1.8*16 | 8-15 | 50-30% | 15%-1% | 18.5KW |
2*18 | 10-20 | 50-30% | 15%-1% | 22KW |
2.2*18 | 12-25 | 50-30% | 15%-1% | 30KW |
2.4*22 | 15-30 | 50-30% | 15%-1% | 45KW |
2.6*24 | 18-35 | 50-30% | 15%-1% | 55KW |
2.8*26 | 20-40 | 50-30% | 15%-1% | 75KW |
3*28 | 25-50 | 50-30% | 15%-1% | 90KW |
3.2*28 | 30-60 | 50-30% | 15%-1% | 110KW |
3.4*30 | 35-70 | 50-30% | 15%-1% | 132KW |
3.6*32 | 40-80 | 50-30% | 15%-1% | 160KW |
3.8*32 | 50-100 | 50-30% | 15%-1% | 185KW |
