Sawdust Dryer

Sawdust Dryer

Sawdust Dryer is for wood processing by products, such as sawdust, wood chips, wood powder, sawdust, wood bran, shavings and other biomass fuel drying treatment, sawdust drying can be high water sawdust rapid dehydration of about 15%, to meet the requirements of particle production mechanism, drying host is equipped with a high-speed rotating crushing device, increase the material and drying medium touch area, Some unique design inside the equipment, so that the material is not easy to stick on the board and cylinder wall, the machine insulation, sealing performance is good, thermal efficiency is much higher than the general drum dryer.

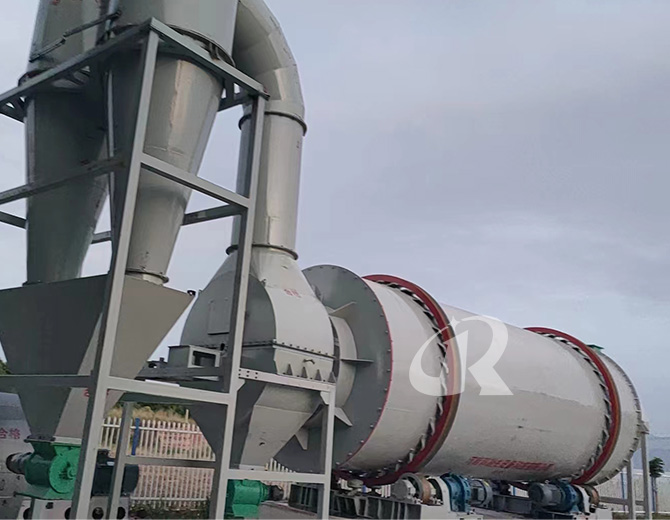

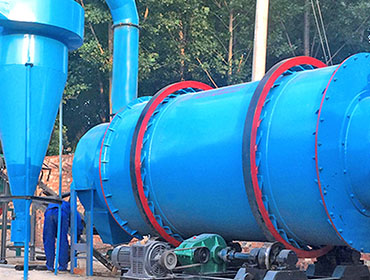

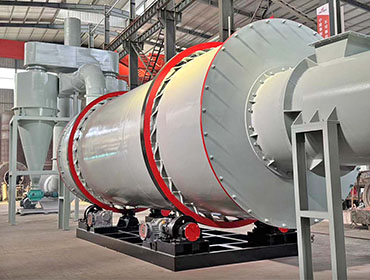

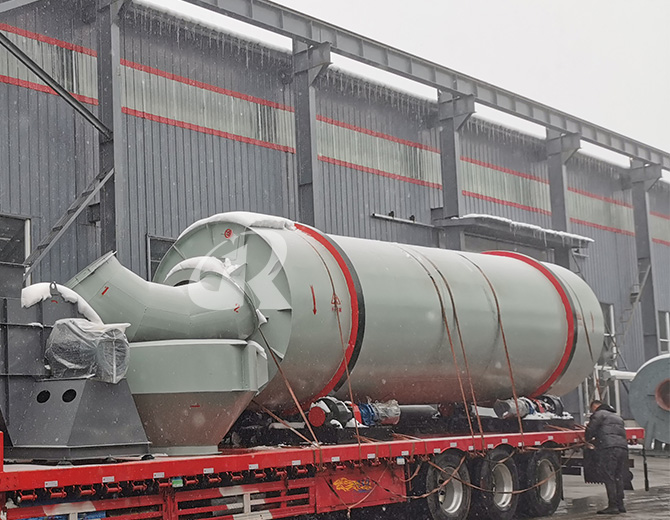

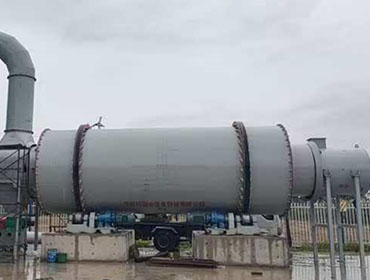

Sawdust Dryer - 0
Sawdust Dryer - 1
Sawdust Dryer - 2
Sawdust Dryer - 3
  • Output:0.5-10t/h
  • Power:4-75KW
  • Input moisture:60%
  • Output moisture:13%(adjustable)
Online Chat Get Quote

Product Introduction

Sawdust Dryer is for wood processing by products, such as sawdust, wood chips, wood powder, sawdust, wood bran, shavings and other biomass fuel drying treatment, sawdust drying can be high water sawdust rapid dehydration of about 15%, to meet the requirements of particle production mechanism, drying host is equipped with a high-speed rotating crushing device, increase the material and drying medium touch area, Some unique design inside the equipment, so that the material is not easy to stick on the board and cylinder wall, the machine insulation, sealing performance is good, thermal efficiency is much higher than the general drum dryer.

Applicable Material

Sawdust dryer is used to dry sawdust, wood powder, wood chips and other biomass materials.

Heat Source types include ordinary hot air, gas, electric heating, steam, biomass fuel, coal, etc.

Sawdust Dryer

Product Features

01

High quality plate, wear resistant and durable

It is made of wear-resistant manganese plate. The inside is used new alloy lifting plate device, which is wear-resistant and durable and has a long service life.

02

Upgraded version structure, high thermal efficiency

The angle of the new lifting plate device is also seriously designed according to the characteristics of the material, which can increase the heating area of the material, high thermal efficiency and better product quality.

03

Small footprint, low cost

Three tube overlapping, small area, reduce investment in civil construction.

04

Strong power, smooth operation

Adopt new transmission system, upgrade version reducer, strong power, more stable operation.

Working Principle

Sawdust Dryer

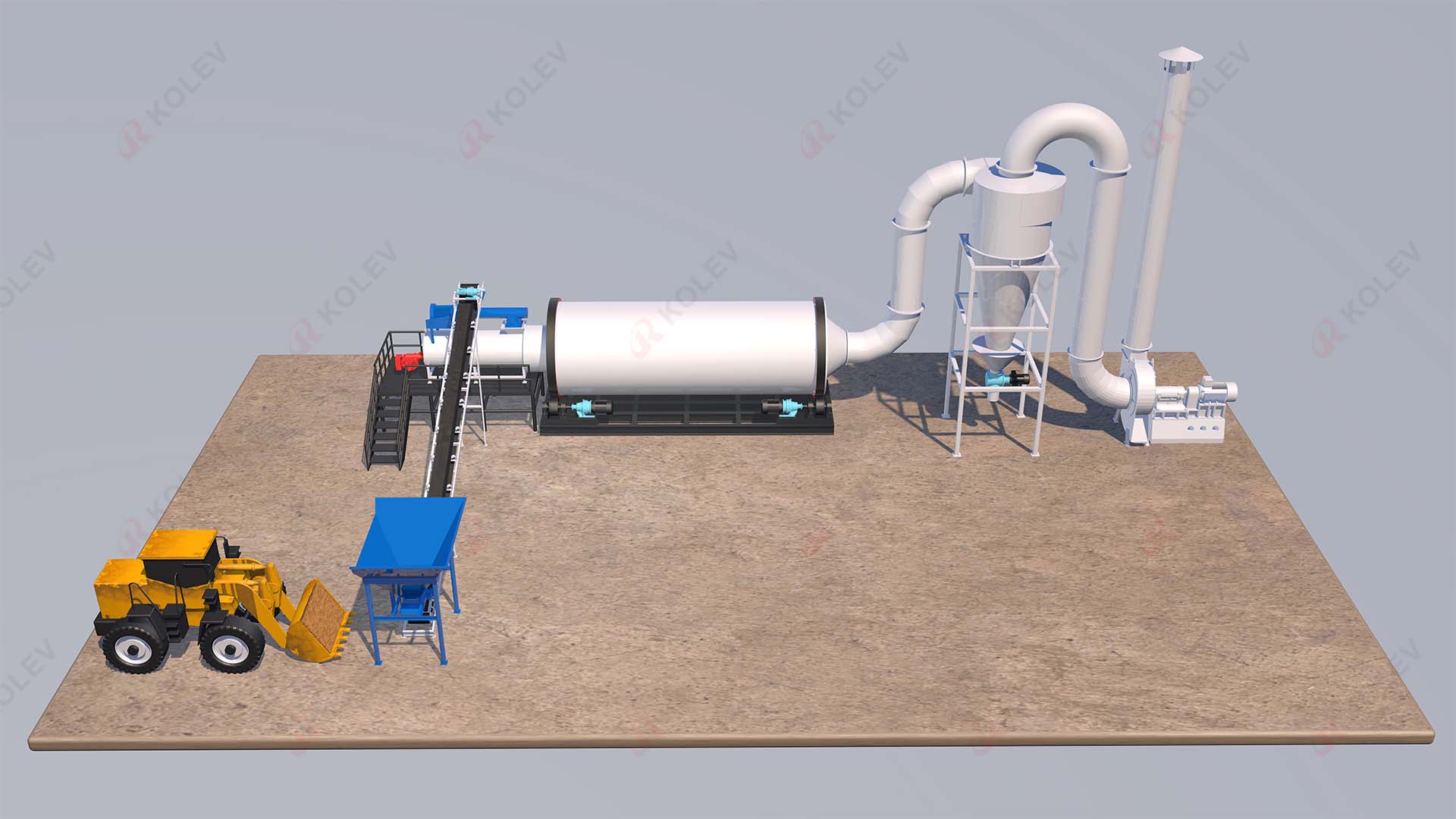

1.In the drying process of sawdust dryer, sawdust are first added to the bin by the forklift, and then the wood chips are evenly sent to the dryer by the belt conveyor for drying treatment.


2.Under the turning of the uniformly distributed shovel plate in the drying drum, it is evenly dispersed and fully touched with the hot air, which speeds up the drying heat transfer and mass transfer of wood chips and evaporates water. The sawdust dryer produced by our company is a sealed structure, which can reduce heat loss and improve thermal efficiency.


3.The dried wood chips flow from the discharge hopper into the belt conveyor, which finally transmits the dried wood chips to the designated place for storage. The upper part of the discharge hopper is the dust in the discharge process. After being treated by the dust removal system, it can achieve the purpose of environmental protection.

Technical Parameter

Specifications and Models Handling capacity Drying Sand(t/h) Finished Product Moisture(%)Drying Temperature(℃) Power(KW)
KLF-TH1216 1-3 <12200-300 4
KLF-TH1630 3-5 <12200-300
4
KLF-TH2240 8-10 <12
200-300
4
KLF-TH2460 10-15 <12200-300
7.5
KLF-TH2660 15-20 <12200-300
15
KLF-TH2870 25-30 <12200-300
18.5
KLF-TH3080 30-40 <12200-300
22
The above parameters are for reference only. For more details, please contact customer service
