Wood Chip Dryer is for wood processing by products, such as sawdust, wood chips, wood powder, wood bran, shavings and other biomass fuel drying treatment, sawdust drying can be high water sawdust rapid dehydration of about 15%, to meet the requirements of particle production mechanism, drying host is equipped with a high-speed rotating crushing device, increase the material and drying medium touch area, Some unique design inside the equipment, so that the material is not easy to stick on the board and cylinder wall, the machine insulation, sealing performance is good, thermal efficiency is much higher than the general drum dryer.
- Capacity：0.5-10t/h
- Power：4-75KW
- Input moisture：50%
- Output moisture：13%(adjustable)
Product Introduction
Wood Chip Dryer is for wood processing by products, such as sawdust, wood chips, wood powder, wood bran, shavings and other biomass fuel drying treatment, sawdust drying can be high water sawdust rapid dehydration of about 15%, to meet the requirements of particle production mechanism, drying host is equipped with a high-speed rotating crushing device, increase the material and drying medium touch area, Some unique design inside the equipment, so that the material is not easy to stick on the board and cylinder wall, the machine insulation, sealing performance is good, thermal efficiency is much higher than the general drum dryer.
Applicable Material
Sawdust dryer is used to dry sawdust, wood powder, wood chips and other biomass materials.Wood bran, sawdust, rice bran, rice husk, bamboo meal, wood meal and other materials.
Heat Source types include ordinary hot air, gas, electric heating, steam, biomass fuel, coal, etc.
Product Features
- 01
-
High quality plate, wear resistant and durable
It is made of wear-resistant manganese plate. The inside is used new alloy lifting plate device, which is wear-resistant and durable and has a long service life.
- 02
-
Upgraded version structure, high thermal efficiency
The angle of the new lifting plate device is also seriously designed according to the characteristics of the material, which can increase the heating area of the material, high thermal efficiency and better product quality.
- 03
-
Large drying output and remarkable energy saving effect
The drying strength is high, the material is highly dispersed in the airflow, and the entire surface of the particles is positively the effective area for drying.
- 04
-
Strong power, smooth operation
Adopt new transmission system, upgrade version reducer, strong power, more stable operation.

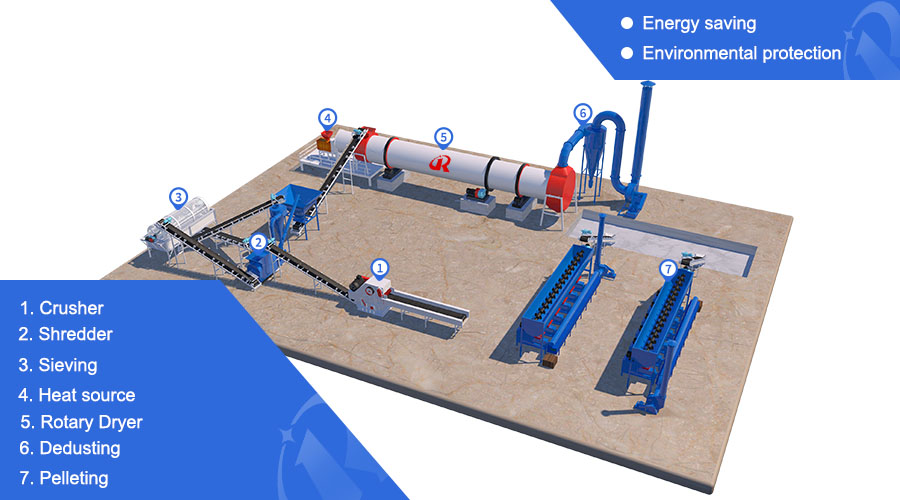

Working Principle
1. The wood is crushed, shredded and screened before entering the dryer.
2. During the drying process of the wood chip dryer, the wood chip is first added to the silo by the forklift, and then the wood chips are evenly sent to the dryer by the belt conveyor for drying.
3. Under the turning of the evenly distributed shovel plates in the drying drum, they are evenly dispersed and fully contacted with hot air, which accelerates the drying, heat and mass transfer of wood chips and evaporates water. The wood chip dryer produced by our company has a sealed structure, which can reduce heat loss and improve thermal efficiency.
4. The dried material flow into the elevator from the discharge hopper, and enter the transfer bin through the elevator. The material enters the granulator machine through the transfer bin, and is pressed into biomass particles, and then packed into bags , sent to the designated place for storage.
5. The upper part of the unloading hopper is the dust during the unloading process. After being treated by the dust removal system, it can achieve the purpose of environmental protection.
Technical Parameter
| Product Standard（m) | Capacity（t/h) | Final Moisture(%) | Drying Temperature(℃) | Power(KW) |
|---|---|---|---|---|
| 0.8*8 | 0.5-3 | 15%-1% | 200-300 | 3KW |
| 1*10 | 1—5 | 15%-1% | 200-300 | 5.5KW |
| 1.2*12 | 2_8 | 15%-1% | 200-300 | 11KW |
| 1.6*16 | 6_10 | 15%-1% | 200-300 | 15KW |
| 1.8*16 | 8—15 | 15%-1% | 200-300 | 18.5KW |
| 2*18 | 10—20 | 15%-1% | 200-300 | 22KW |
| 2.2*18 | 12—25 | 15%-1% | 200-300 | 30KW |
| 2.4*22 | 15—30 | 15%-1% | 200-300 | 45KW |
| 2.6*24 | 18—35 | 15%-1% | 200-300 | 55KW |

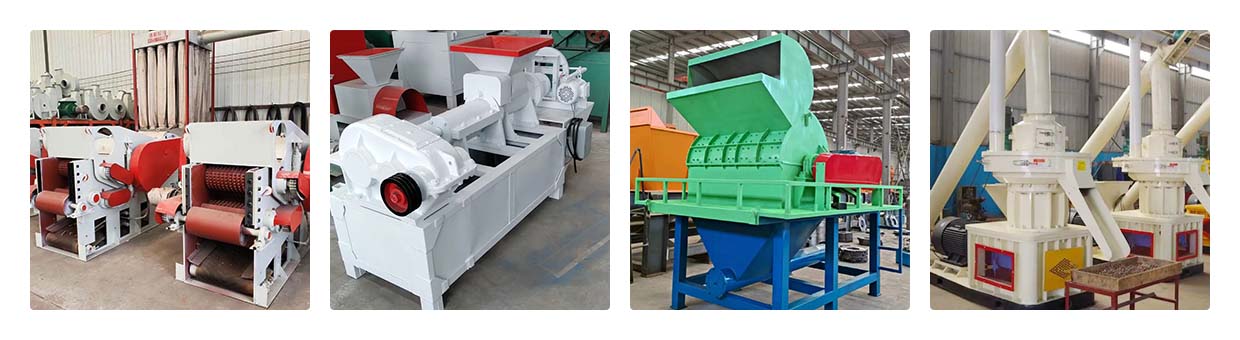

Related Products
