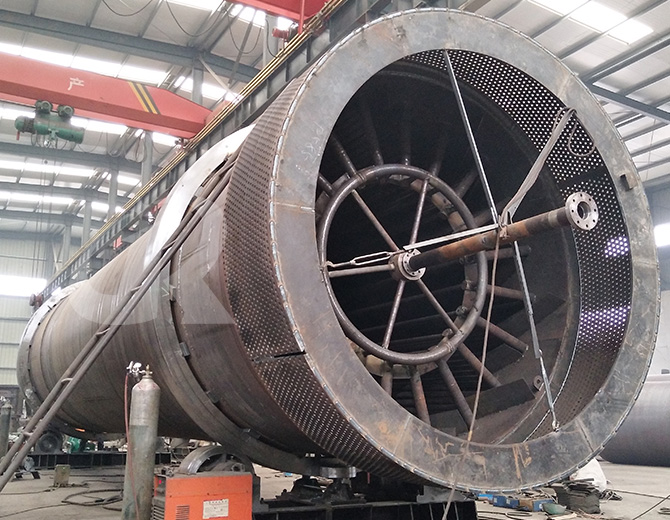

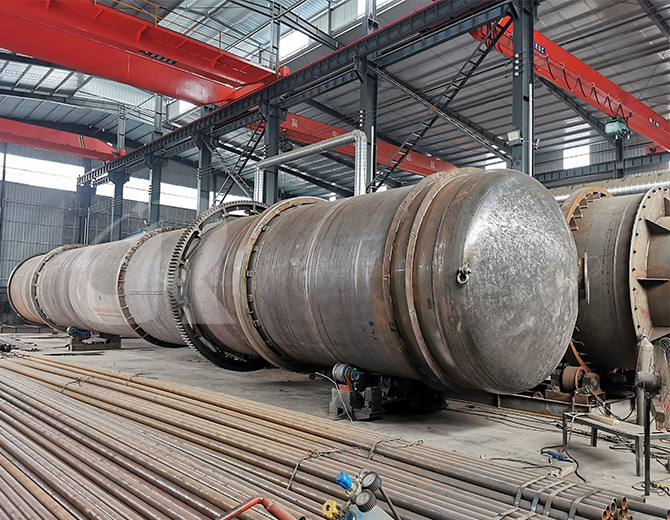

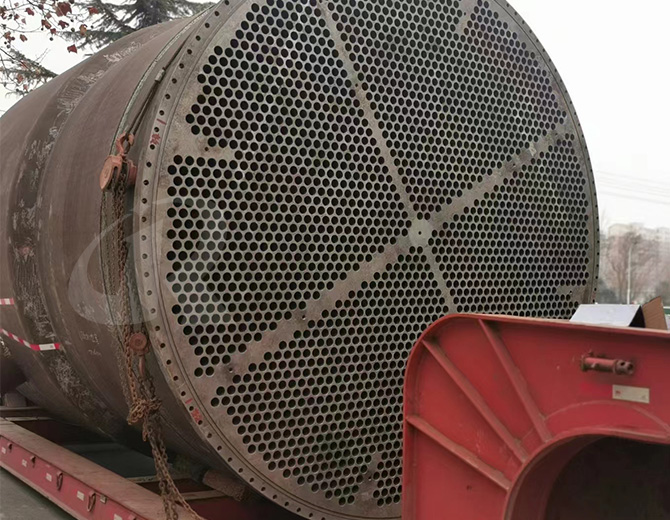

Steam dryer is based on the principle of heat exchange, using the heat emitted by the steam radiator, through the constant suction of the air fan and a heat cycle process, so that the materials in the rotating cylinder in the rotating cylinder constantly positive and negative turn, and gradually dried.
- Capacity：3-100t/h
- Power：5.5-110kw
- Input moisture：30%
- Output moisture：10%(adjustable)
Product Introduction
Steam dryer is based on the principle of heat exchange, using the heat emitted by the steam radiator, through the constant suction of the air fan and a heat cycle process, so that the materials in the rotating cylinder in the rotating cylinder constantly positive and negative turn, and gradually dried.
Applicable Material
Low drying cost, high cleanliness, large output and high efficiency
Suitable for coal slime, coal, bean residue, wine lees, potato residue, medicinal residue, straw, grass, non-viscous mineral powder, coal powder, coke powder and ammonium sulfate, ammonium nitrate, urea, calcium magnesium phosphate fertilizer and other inorganic fertilizer.
Product Features
- 01
-
High degree of continuous automation
The industrialization, continuity and automation of coal slime drying have been realized by using a new type of non-power crushing device.
- 02
-
Upgraded version of internal structure, large processing capacity
The use of down flow mode, unique inlet and outlet device, new internal structure, can change the operation parameters according to different material properties and finished product requirements, its strong load resistance, large handling capacity, less fuel consumption, low drying cost.
- 03
-
Energy saving, environmental protection and high efficiency
Enhanced dust removal device, a variety of heat sources to meet the environmental requirements of different areas.
- 04
-
Simple structure and stable performance
Aligning tugboat design.
Working Principle

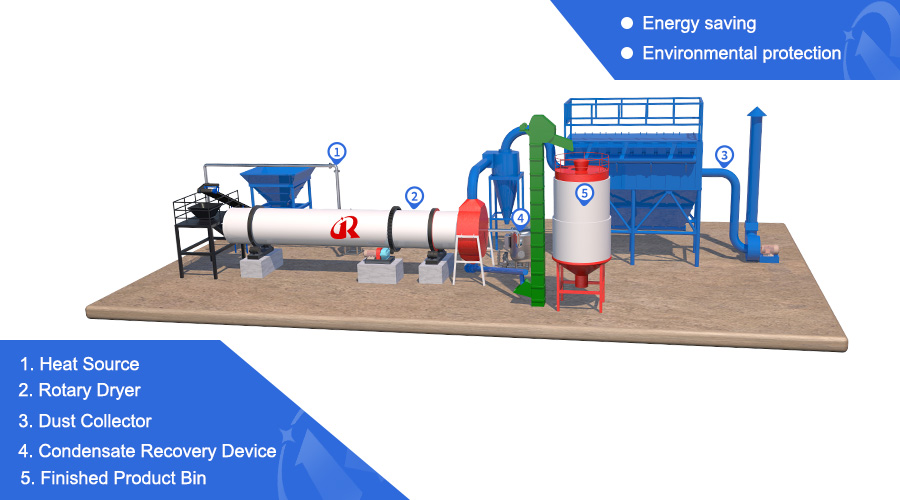

The air circulation system of steam dryer adopts the fan circulation air supply mode, and the air circulation is uniform and efficient. The air source is driven by the circulating air supply motor (using a non-touch switch) to drive the air wheel through the heater, and the hot air is sent out through the air duct to the inner chamber of the dryer, and then the used air is sucked into the air duct to become the air source for re-circulation and heating. Ensure indoor temperature uniformity. When the temperature swings due to the opening and closing action, the air supply circulation system quickly recovers the operation state until it reaches the set temperature value. Steam, hot water and other heat carriers are added by the steam journal tube and distributed to each heating tube through the collector box. Condensate water is discharged from the collector box through the inclination of the dryer. The material is dried by the lifting and stirring of the heating tube in the dryer, and moves from the higher end to the lower end with the help of the inclination of the dryer, and is discharged from the end hopper.
Technical Parameter
| product standard（m) | Capacity（t/h) | Feed moisture（%） | Final Moisture(%) | Power(KW) |
|---|---|---|---|---|
| 0.8*8 | 0.5-3 | 30% | 15%-1% | 3KW |
| 1*10 | 1-5 | 30% | 15%-1% | 5.5KW |
| 1.2*12 | 2-8 | 30% | 15%-1% | 11KW |
| 1.6*16 | 6-10 | 30% | 15%-1% | 15KW |
| 1.8*16 | 8-15 | 30% | 15%-1% | 18.5KW |
| 2*18 | 10-20 | 30% | 15%-1% | 22KW |
| 2.2*18 | 12-25 | 30% | 15%-1% | 30KW |
| 2.4*22 | 15-30 | 30% | 15%-1% | 45KW |
| 2.6*24 | 18-35 | 30% | 15%-1% | 55KW |
| 2.8*26 | 20-40 | 30% | 15%-1% | 75KW |
| 3*28 | 25-50 | 30% | 15%-1% | 90KW |
| 3.2*28 | 30-60 | 30% | 15%-1% | 110KW |
| 3.4*30 | 35-70 | 30% | 15%-1% | 132KW |
| 3.6*32 | 40-80 | 30% | 15%-1% | 160KW |
| 3.8*32 | 50-100 | 30% | 15%-1% | 185KW |
