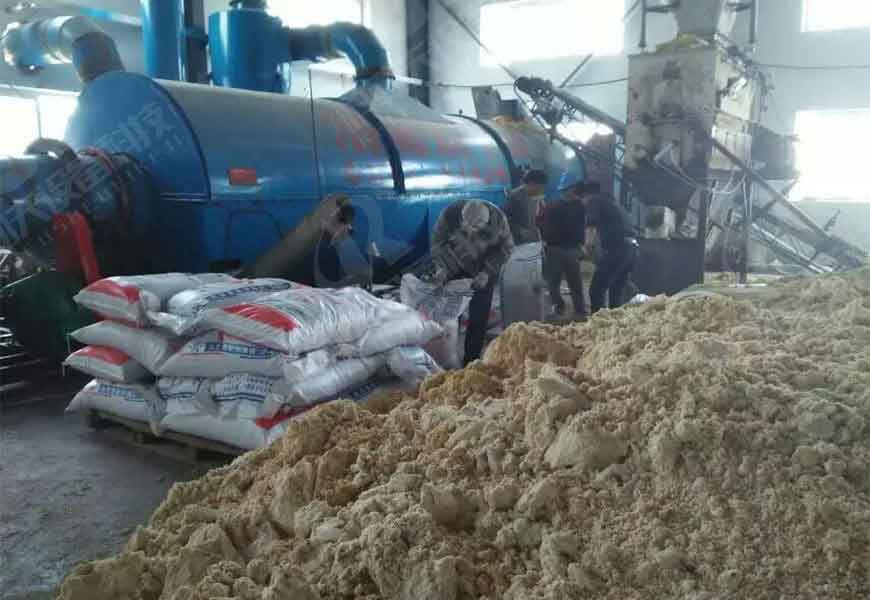

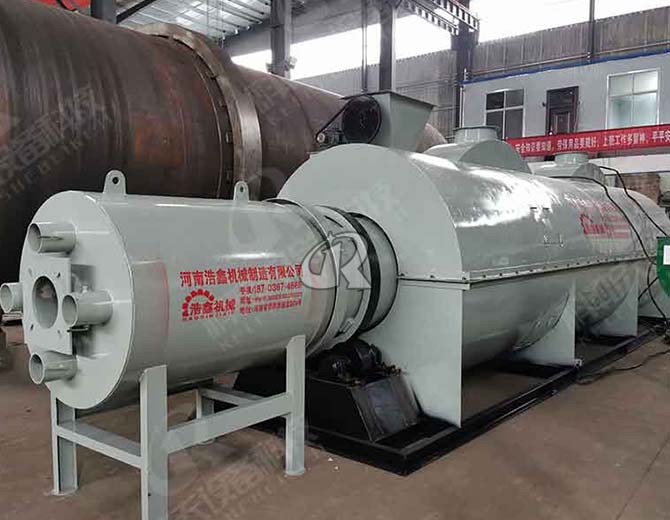

Bean residue dryer line is a set of continuous bean residue drying equipment designed and manufactured for drying bean residue, the by-product of bean protein extraction from soybean meal.
- Capacity：8-90t/h
- Power：5.5-110KW
- Input moisture：20%
- Output moisture：0.5%(adjustable)
Product Introduction
Bean residue dryer line is a set of continuous bean residue drying equipment designed and manufactured for drying bean residue, the by-product of bean protein extraction from soybean meal.
Applicable Material
Strong pertinence, good quality, large output, flexible system configuration
Soybean residue, fermented soybean residue, soybean milk and soybean milk residue, bean curd residue, pea residue, soybean residue, soybean fiber and other feed grade soybean residue materials drying.
Product Features
- 01
-
High degree of mechanization, cost saving
The automatic production mode can realize the automatic production from heating, feeding, feeding, drying, discharging and other processes; Save labor cost.
- 02
-
The equipment has reasonable structure and stable performance
Simple operation, stable performance, can work continuously for 24 hours, less failure, low maintenance cost.
- 03
-
Internal structure upgrade to increase thermal efficiency
The special dispersing device is adopted inside. After entering the rotary drum, the feed is quickly dispersed and decomposed, which effectively increases the area of contact between the feed and hot air.
- 04
-
Multistage dust removal, clean production
The whole drying system is equipped with perfect exhaust gas treatment device. The exhaust gas discharged from the gas cylinder is sent to the dust collector and discharged to the local environmental protection standards after purification.
Working Principle
The bean slag is first filtered and dehydrated before entering the dryer. Under the turning of the uniformly distributed shovel plate in the drum, it is evenly dispersed and fully in touch with the hot air in the dryer, which speeds up the heat transfer and mass transfer of the drying. The bean slag is discharged to another discharge valve in the dryer under the action of the inclined shovel plate and the hot medium.
Technical Parameter
| product standard（m) | Capacity（t/h) | Feed moisture（%） | Final Moisture(%) | Power(KW) |
|---|---|---|---|---|
| 0.8*8 | 0.5-3 | 30% | 15%-1% | 3KW |
| 1*10 | 1-5 | 30% | 15%-1% | 5.5KW |
| 1.2*12 | 2-8 | 30% | 15%-1% | 11KW |
| 1.6*16 | 6-10 | 30% | 15%-1% | 15KW |
| 1.8*16 | 8-15 | 30% | 15%-1% | 18.5KW |
| 2*18 | 10-20 | 30% | 15%-1% | 22KW |
| 2.2*18 | 12-25 | 30% | 15%-1% | 30KW |
| 2.4*22 | 15-30 | 30% | 15%-1% | 45KW |
| 2.6*24 | 18-35 | 30% | 15%-1% | 55KW |
| 2.8*26 | 20-40 | 30% | 15%-1% | 75KW |
| 3*28 | 25-50 | 30% | 15%-1% | 90KW |
| 3.2*28 | 30-60 | 30% | 15%-1% | 110KW |
| 3.4*30 | 35-70 | 30% | 15%-1% | 132KW |
| 3.6*32 | 40-80 | 30% | 15%-1% | 160KW |
| 3.8*32 | 50-100 | 30% | 15%-1% | 185KW |
