Dried fly ash is an extremely valuable cement admixture, concrete additive, building material raw material, and slag powder ingredient, with wide applications in construction, roads, and mine backfilling.

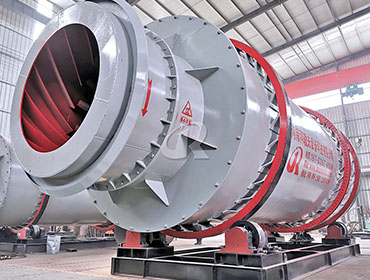

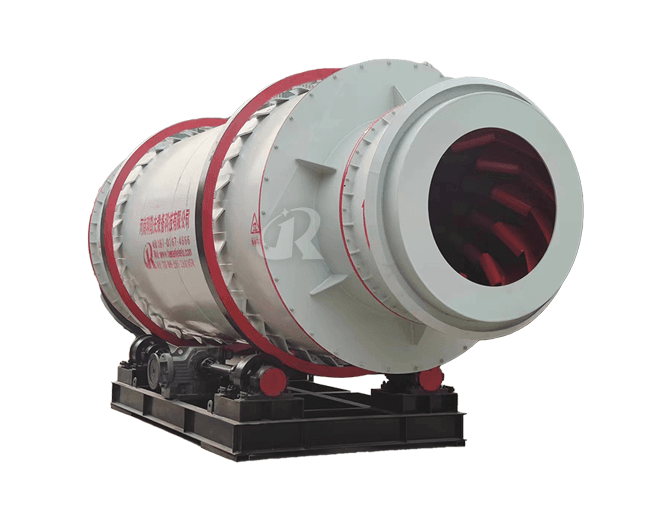

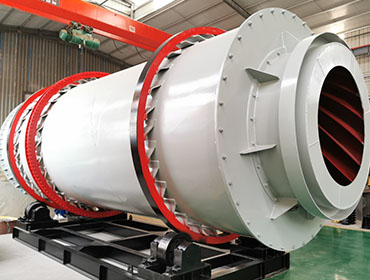

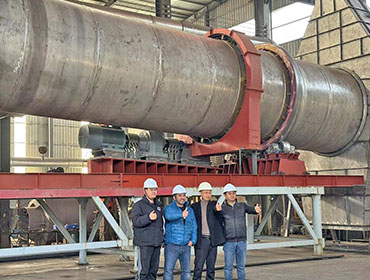

Our Fly Ash Triple-Pass Rotary Dryer is specifically designed for this application. Utilizing three concentric cylinders nested inside each other, combined with a fully sealed negative pressure operating system, anti-sticking breaking device, and high-efficiency dust collection system, it rapidly reduces fly ash moisture from 20%-50% down to 1%-5%, while strictly controlling dust emissions to meet the world's most stringent environmental standards.
Compared with traditional single-drum dryers, the triple-pass design achieves thermal efficiency exceeding 80%, over 50% less floor space, and 40%-60% lower energy consumption—making it the ideal choice for power plants, incineration facilities, and building material companies processing fly ash.
Dried products from the Fly Ash Dryer can be widely used in the following applications:
| Application | Product Use | Value Proposition |
|---|---|---|
| Cement Admixture | Cement blending material | Replaces part of cement clinker, reducing cement production costs and carbon emissions |
| Concrete Additive | High-performance concrete admixture | Improves concrete workability, long-term strength, and durability |
| Building Materials | Blocks, bricks, ceramsite | Serves as aggregate or cementitious material for lightweight building products |
| Road Engineering | Road base stabilizer | Used for road base and subbase layers, improving roadbed strength |
| Mine Backfilling | Cemented backfill material | Mixed with cement for mine goaf backfilling, achieving solid waste resource utilization |
| Slag Powder | Slag powder admixture | Co-ground with slag to produce high-activity slag powder |
This Fly Ash Triple-Pass Rotary Dryer utilizes three concentric cylinders nested inside each other, dividing the drying process into three stages, with special reinforcement for the fine powder, high-moisture, and dust-prone characteristics of fly ash:
Stage One: Outer Cylinder (Co-current Drying)
Wet fly ash (20%-50% moisture) is fed into the outer cylinder via a sealed screw conveyor. The feed inlet is equipped with a powerful breaking device that forcibly breaks agglomerated wet fly ash into fine powder, preventing blockages. A hot air furnace generates 200°C-400°C hot air, which flows in the same direction as the material, rapidly evaporating surface free water. Combined lifting plates on the inner wall continuously lift and drop the fly ash, forming a uniform "material curtain" that maximizes heat exchange area.
Stage Two: Middle Cylinder (Counter-current Drying)
Material enters the middle cylinder where hot air flows in the opposite direction. The middle cylinder is surrounded by the outer and inner cylinders, creating a self-insulating system—heat dissipated from the inner and outer cylinders is absorbed by the material in the middle, achieving full thermal utilization and significantly improving thermal efficiency. This stage provides deep dewatering, removing bound moisture from within the fly ash.
Stage Three: Inner Cylinder (Reciprocating Drying)
Material enters the inner cylinder where moisture has been significantly reduced. Under the action of specially designed rectangular multi-loop lifting plates, the material moves in a "two steps forward, one step back" pattern, extending residence time and ensuring uniform drying. Final moisture is stably controlled at 1%-5%.
Fully Sealed Negative Pressure Operating System:
Fly ash is highly prone to dust generation, requiring extremely high environmental standards. The entire system operates under fully sealed negative pressure from feeding, drying, to discharge, paired with a high-efficiency pulse baghouse filter to ensure zero dust leakage. A slight negative pressure is maintained inside the system to effectively prevent dust emissions.
Gas-Solid Separation & Exhaust Treatment:
Dried fly ash is discharged via a sealed discharger, while dust-laden exhaust gas enters a high-efficiency pulse baghouse filter (filtration accuracy <10mg/Nm³) for purification before being safely discharged. Recovered fine powder can be directly remixed into the final product, achieving zero loss.
| Model | Cylinder Dia. (m) | Length (m) | Capacity (t/h) | Initial Moisture | Final Moisture | Power (kW) |
|---|---|---|---|---|---|---|
| FAD-2010 | 2.0 | 10 | 3-8 | 20%-35% | 1%-5% | 78 |
| FAD-2210 | 2.2 | 10 | 5-12 | 20%-35% | 1%-5% | 85 |
| FAD-2510 | 2.5 | 10 | 8-18 | 20%-35% | 1%-5% | 110 |
| FAD-2512 | 2.5 | 12 | 10-22 | 20%-35% | 1%-5% | 125 |
| FAD-2912 | 2.9 | 12 | 15-30 | 20%-35% | 1%-5% | 135 |
| FAD-2915 | 2.9 | 15 | 20-40 | 20%-35% | 1%-5% | 160 |
| FAD-3215 | 3.2 | 15 | 25-50 | 20%-35% | 1%-5% | 185 |
Designed for Fly Ash Processing: We deeply understand the characteristics of fly ash—fine powder, high moisture, dust-prone, and containing hard particles. From the fully sealed negative pressure system to wear-resistant design, from the breaking device to temperature control strategies, every aspect is optimized for fly ash, ensuring environmental compliance and stable operation.
Environmental Compliance, Eliminate Environmental Risks: Fully sealed negative pressure operation + high-efficiency dust collection system, achieving dust emission concentrations below 10mg/Nm³, meeting the stringent environmental standards of developed countries such as the US, Europe, and Japan, helping customers pass environmental certifications.
Increase Product Value: Activity index increases by 10%-20% after drying, allowing greater replacement of cement clinker and creating higher economic benefits. Dried fly ash can sell for 30%-50% higher than wet ash.
Lower Operating Costs: Triple-pass structure saves 40%-60% energy, reduces floor space by 50%, self-cleaning design minimizes downtime for cleaning—far lower lifecycle costs than alternative drying solutions.
Global Service Network: With over 20 years of experience serving the power generation, environmental, and building materials industries, our products have been exported to over 40 countries and regions including the US, Germany, Japan, Korea, India, Turkey, Poland, and Russia. We dispatch engineers for overseas installation and commissioning, providing bilingual technical support.
EPC Turnkey Capability: From material testing, process design, and equipment manufacturing to installation, commissioning, and personnel training—complete turnkey engineering services.
Get Your Customized Solution:
Request a Quote → Tell us your capacity, material characteristics, heat source availability, and site conditions, and we will respond within 24 hours
Schedule a Technical Discussion → Speak one-on-one with our environmental drying engineer
