Gypsum Calcination Dryer
Gypsum Calcination Dryer

Suitable for drying natural gypsum, gypsum, phosphogypsum, sulfur gypsum, desulfurized gypsum, gypsum slag, gypsum sludge and other gypsum materials

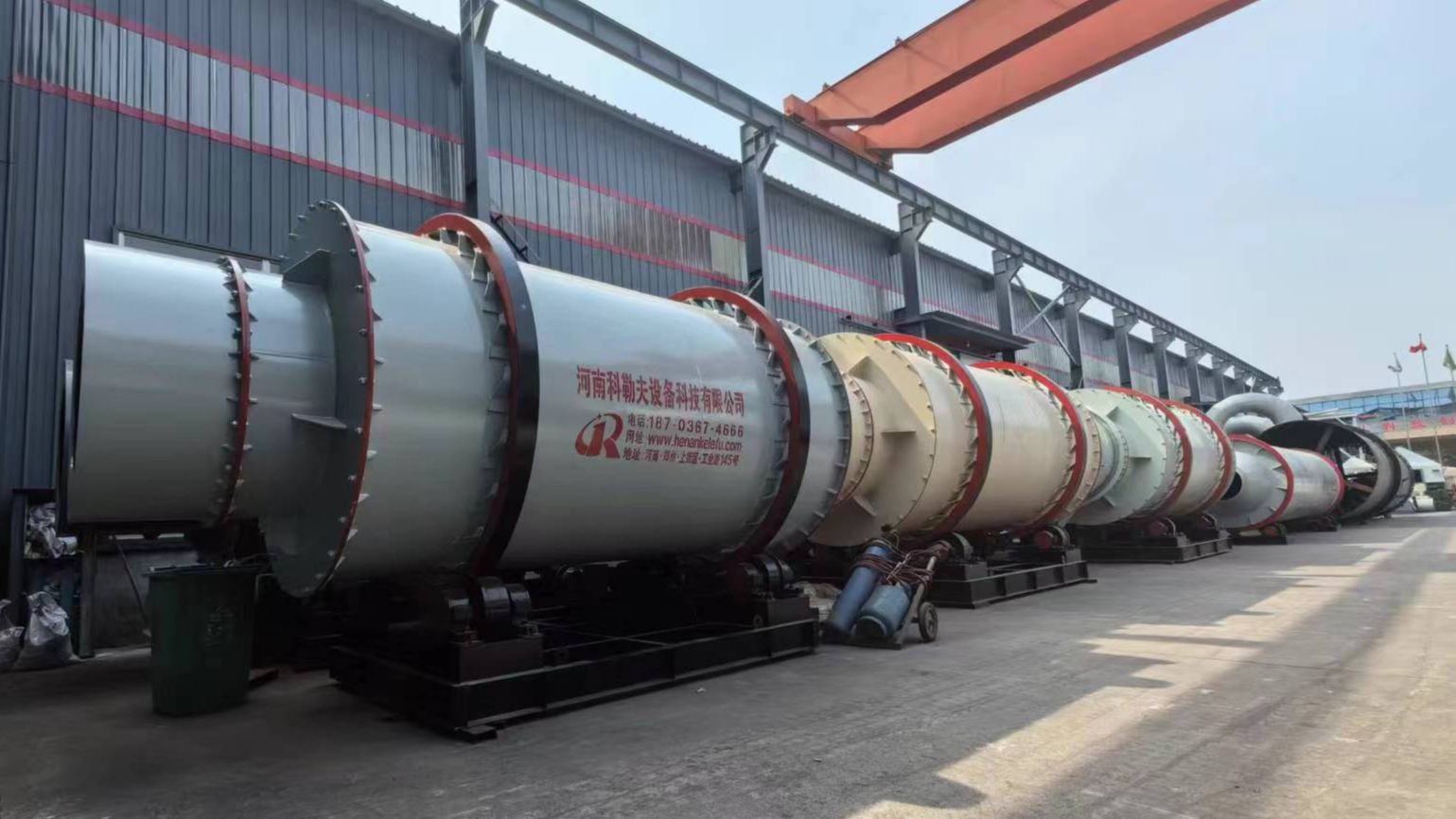

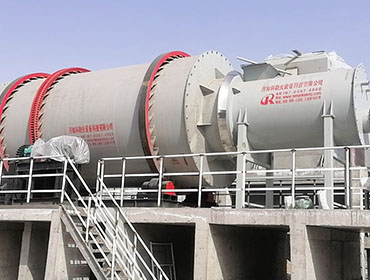

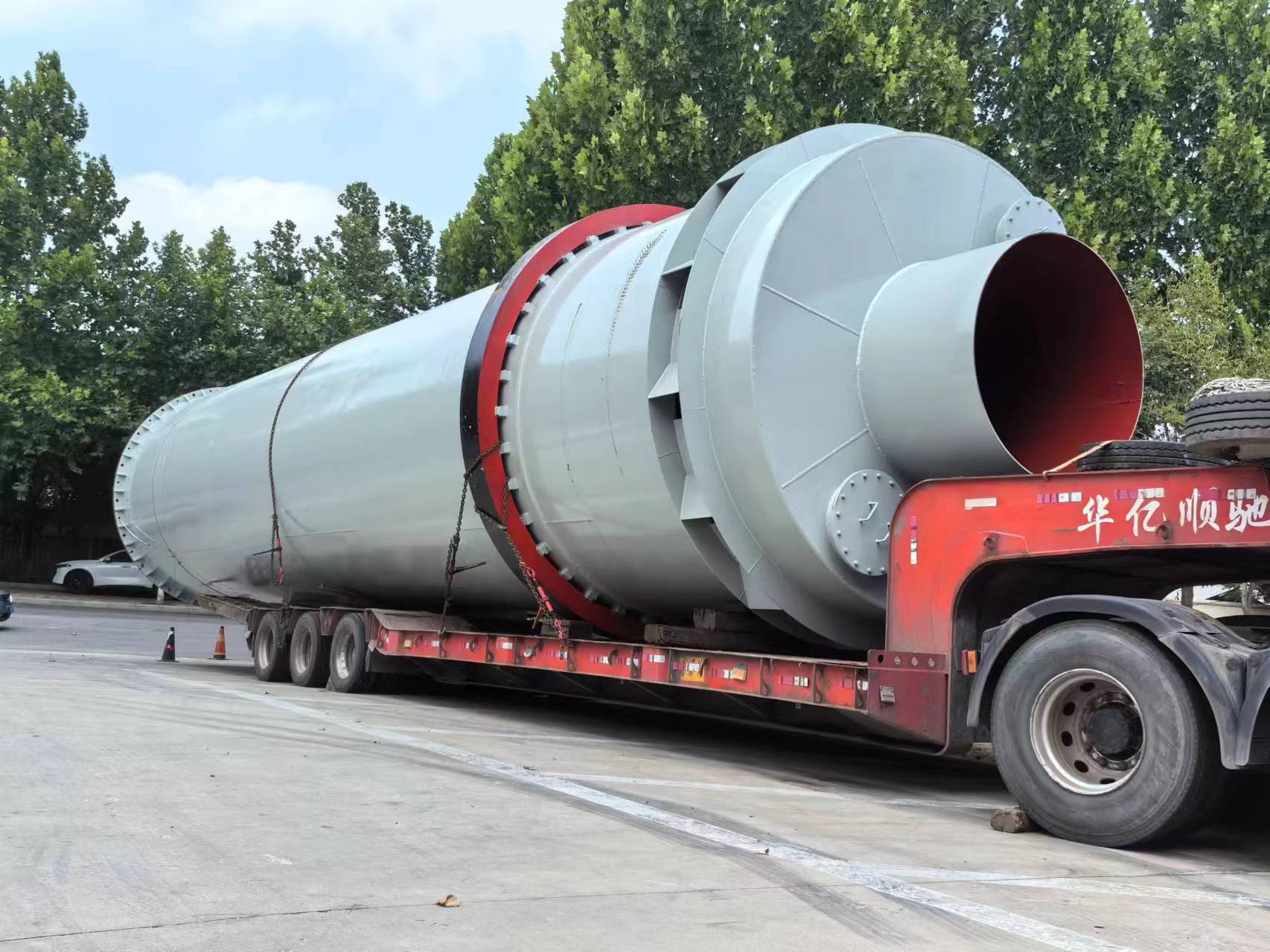

Gypsum Calcination Dryer - 0

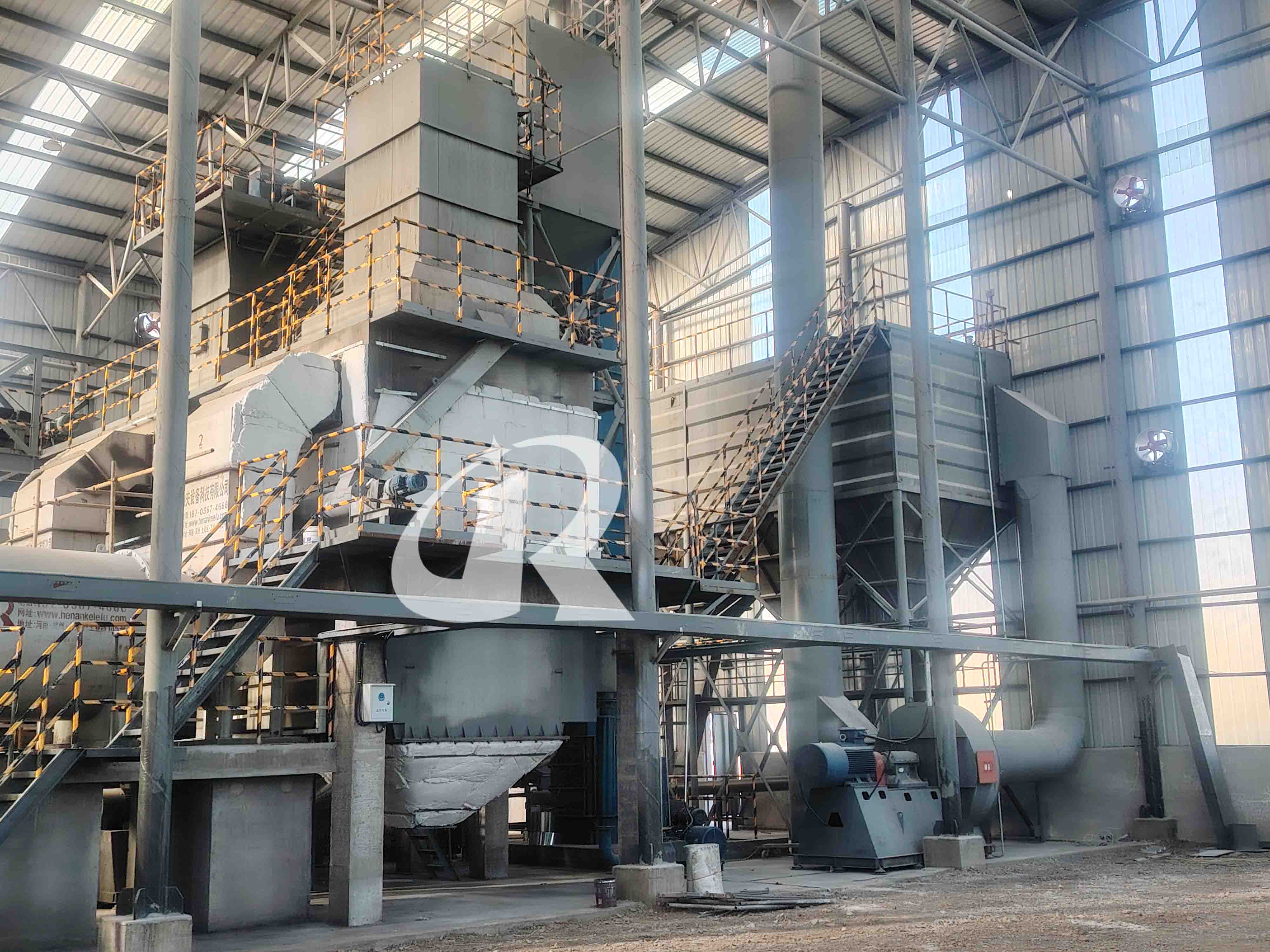

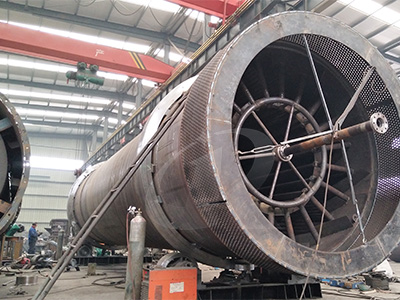

Gypsum Calcination Dryer - 1

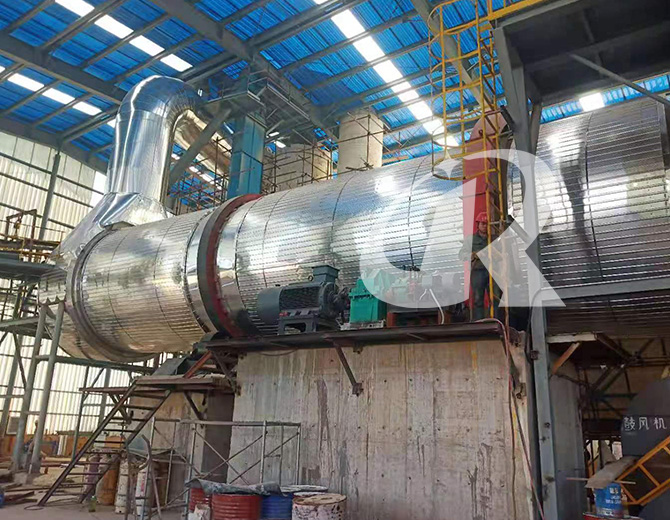

Gypsum Calcination Dryer - 2
Gypsum Calcination Dryer - 3
  • Input size:30%
  • Output moisture:≤5%
  • Capacity:180-3000T/D
Online Chat Get Quote
Get a quote

Applicable Material

Applied material --- natural gypsum, gypsum, phosphogypsum, sulfur gypsum, desulpurized gypsum, gypsum slag, gypsum sludge and other gypsum materials,FGD gypsum.

gypsum material
gypsum material
gypsum material
gypsum material
Get a quote

Introduce

Here are two methods for calcining natural gypsum and desulfurized gypsum: low-temperature calcination and high-temperature flash firing. Both methods can produce plaster of paris (semi-hydrated gypsum), which can be used in the fields of building materials such as gypsum mortar and plastering gypsum, paper gypsum, etc. ,Putty powder. Anhydrous gypsum, used for floor gypsum, high-strength gypsum, etc.
It is suitable for direct heating dryers, indirect heating dryers, airflow rapid calcination, fluidized bed combustion boiler calcination, wok calcination and other processing technologies. There are downstream drying and countercurrent drying drying methods. We are a manufacturer specializing in the production of gypsum calcination processes. We can provide you with professional solutions and technical support based on the characteristics of local gypsum.

Get a quote

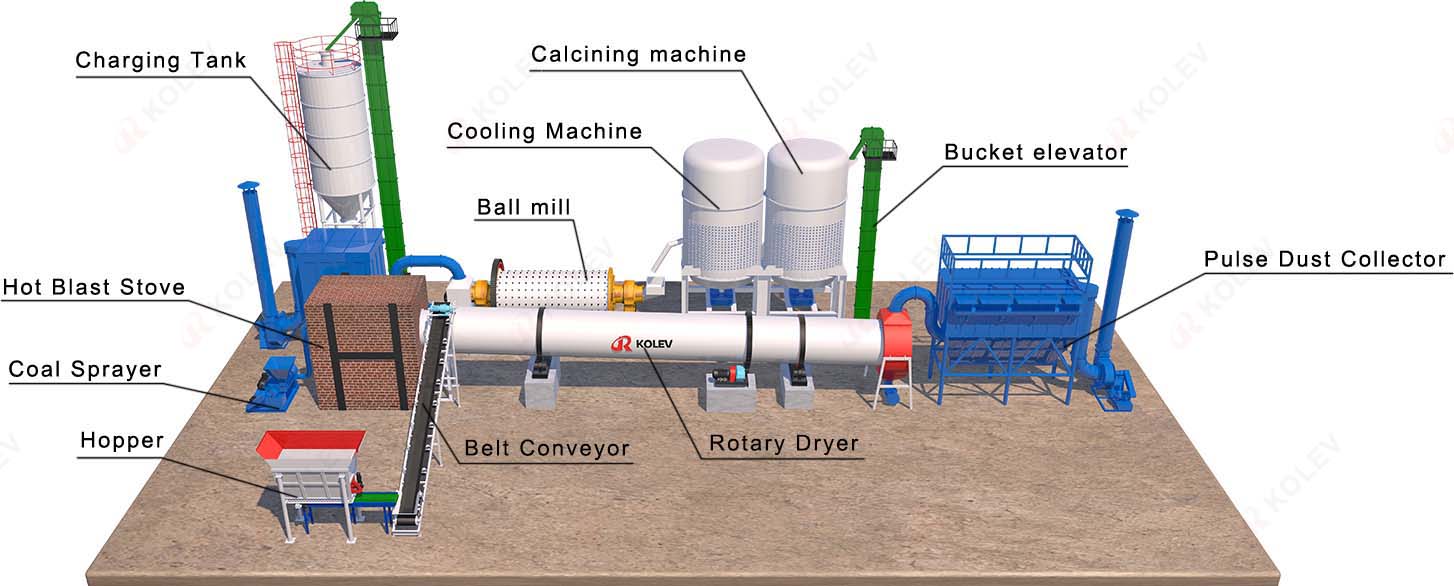

Flow chart

Flow chart

1. The forklift delivers the gypsum raw materials into the large anti-blocking silo. There is a belt weighing scale at the bottom of the silo to control the material conveying speed.
2. This process uses coal as the heat source and is equipped with a coal injection machine and a combustion chamber.
3. The material enters the dryer from the belt conveyor for calcination and is flash-fired at high temperature. After calcination, the material enters the cooler. The cooled material enters the ball mill for grinding and modification. The finished product is transported to the material tank by an elevator.
4.A temperature controller can be configured to reduce air loss in the induced draft system and increase drying output. Real-time monitoring and control of material temperature to improve thermal efficiency.
5.We accept customization of dryers made of different materials, such as carbon steel, stainless steel, special alloys, etc.
6.Provide product quality assurance and have CE IOS certification.

Get a quote
Cass Video

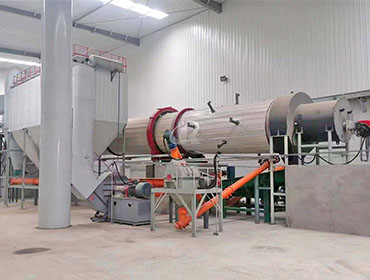

gypsum dryer

capacity:8-10T/H
input moisture:15%
output moisture:less 5%(adjust)
heat source:steam
Drying method:Down-flow dryer--indirect heating dryer
Uniform heating, dynamic calcination, no raw or over-burning phenomena, and can be used for continuous automated production.
Simple operation and maintenance, safe and stable equipment operation.

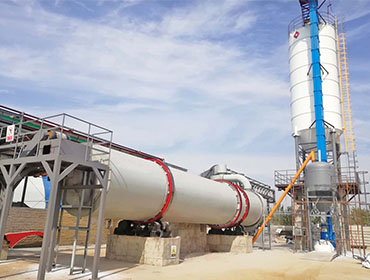

gypsum dryer

capacity:15T/H
input moisture:15%
output moisture:1%(adjust)
heat source: gas
Drying method:Counter flow dryer--Direct heated dryer
Uniform heating, dynamic calcination, no raw or over-burning phenomena, and can be used for continuous automated production.
Simple operation and maintenance, safe and stable equipment operation.

Get a quote

Technical Parameter

Product Standard (M) Capacity(T/H) Feed Moisture(%) Final Moisture(%) Power(KW)
0.8*8 0.5-3 30% 15%-1% 3KW
1*10 1-5 30% 15%-1% 5.5KW
1.2*12 2-8 30% 15%-1% 11KW
1.6*16 6-10 30% 15%-1% 15KW
1.8*16 8-15 30% 15%-1% 18.5KW
2*18 10-20 30% 15%-1% 22KW
2.2*18 12-25 30% 15%-1% 30KW
2.4*22 15-30 30% 15%-1% 45KW
2.6*24 18-35 30% 15%-1% 55KW
2.8*26 20-40 30% 15%-1% 75KW
3*28 25-50 30% 15%-1% 90KW
3.2*28 30-60 30% 15%-1% 110KW
3.4*30 35-70 30% 15%-1% 132KW
3.6*32 40-80 30% 15%-1% 160KW
3.8*32 50-100 30% 15%-1% 185KW
Get a quote

Product Features

Stable performance and high thermal efficiency
The structural configuration is optimized, the equipment operates stably, and complete anti-corrosion and thermal insulation measures can be configured according to needs.
Green, environmentally friendly, resource saving
The circulating heating and drying system greatly saves energy. It is equipped with efficient dust removal device and is green and environmentally friendly.
Intelligent control, Easy Control
The machine adopts an intelligent control system to monitor the temperature in real time, automatically adjust the speed according to the set parameters, and control the moisture content of the finished product.
