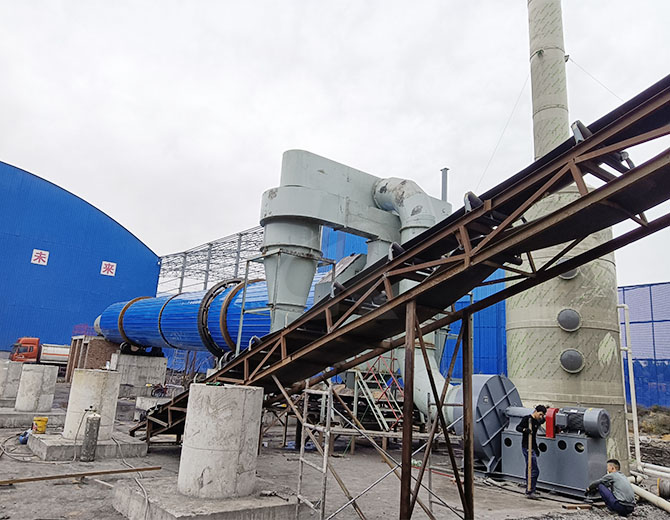

![Coal Dryer Coal Dryer](/uploads/20230531/26181564c43f3beb2b85bea1f7975edb.jpg)
In view of the coal has many adverse drying conditions such as high moisture, high viscosity, high water holding capacity and low calorific value, the new generation of coal dryer complete system of Kolev equipment adopts a new feeding and discharging device, which eliminates the roller dryer feeding blockage, discontinuity, uneven and material return phenomenon, and reduces the load of dust removal system.
![Coal Dryer - 0 Coal Dryer - 0](/uploads/20230531/26181564c43f3beb2b85bea1f7975edb.jpg)
- Capacity:3-100t/h
- Power:5.5-110KW
- Input moisture:30%
- Output moisture:10%(adjustable)
Product Introduction
In view of the coal has many adverse drying conditions such as high moisture, high viscosity, high water holding capacity and low calorific value, the new generation of coal dryer complete system of Kolev equipment adopts a new feeding and discharging device, which eliminates the roller dryer feeding blockage, discontinuity, uneven and material return phenomenon, and reduces the load of dust removal system.
Applicable Material
Strong anti - overload capacity, large processing capacity, less fuel consumption, low drying cost
Coal, peat, sludge, raw coal, flotation cleaned coal, paste coal, mixed cleaned coal, blast furnace slag, coking and other secondary coal slime.
![Coal Dryer Coal Dryer](/uploads/20230823/9fe12add0a2f5eef8a7bc20a6c9508ee.jpg)
Product Features
- 01
-
High degree of continuous automation
The industrialization, continuity and automation of coal slime drying have been realized by using a new type of non-power crushing device.
- 02
-
Upgraded version of internal structure, large processing capacity
The use of downflow mode, unique inlet and outlet device, new internal structure, can change the operation parameters according to different material properties and finished product requirements, its strong load resistance, large handling capacity, less fuel consumption, low drying cost.
- 03
-
Energy saving, environmental protection and high efficiency
Enhanced dust removal device, a variety of heat sources to meet the environmental requirements of different areas.
- 04
-
Simple structure and stable performance
Aligning tugboat design.
Working Principle
![Coal Dryer Coal Dryer](/assets/img/files/product/2- hong_gan/mei_ni_hong_gan_ji/2-2-3.jpg)
Coal has a certain viscosity. During the drying process, the wet coal slurry enters the dryer and then enters the following working area: guide area, cleaning area, inclined lifting plate area, discharge area. Coal into the guide material area and hot air contact after evaporation of a large amount of water, then into the cleaning area. The lifting plate make the material form curtain state, cleaning area is provided with a cleaning device, which can quickly clean off the coal bonding cylinder wall. In this process, it can also be broken pellet agglomeration, increasing the heat exchange area and improving the drying rate. After drying the finished product moisture standard, and than into the final discharge area. The material rolls to the discharge port to complete the whole drying process.
Technical Parameter
Product Standard(m) | Capacity(t/h) | Feed moisture(%) | Final Moisture(%) | Power(KW) |
---|---|---|---|---|
0.8*8 | 0.5-3 | 30% | 15%-1% | 3KW |
1*10 | 1-5 | 30% | 15%-1% | 5.5KW |
1.2*12 | 2-8 | 30% | 15%-1% | 11KW |
1.6*16 | 6-10 | 30% | 15%-1% | 15KW |
1.8*16 | 8-15 | 30% | 15%-1% | 18.5KW |
2*18 | 10-20 | 30% | 15%-1% | 22KW |
2.2*18 | 12-25 | 30% | 15%-1% | 30KW |
2.4*22 | 15-30 | 30% | 15%-1% | 45KW |
2.6*24 | 18-35 | 30% | 15%-1% | 55KW |
2.8*26 | 20-40 | 30% | 15%-1% | 75KW |
3*28 | 25-50 | 30% | 15%-1% | 90KW |
3.2*28 | 30-60 | 30% | 15%-1% | 110KW |
3.4*30 | 35-70 | 30% | 15%-1% | 132KW |
3.6*32 | 40-80 | 30% | 15%-1% | 160KW |
3.8*32 | 50-100 | 30% | 15%-1% | 185KW |
