Biomass  Rotary Dryer

Biomass Rotary Dryer

Biomass energy is a renewable energy with the advantages of renewable, low-carbon, green, biodegradable, etc., and is considered an important part of future sustainable energy. Biomass drying The drying process can remove moisture from biomass, improve biomass density and combustion efficiency, and reduce transportation and storage costs. At the same time, drying can also kill microorganisms and insect eggs in biomass and improve the hygienic quality of biomass.

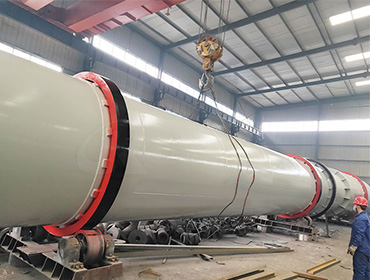

Biomass  Rotary Dryer - 0

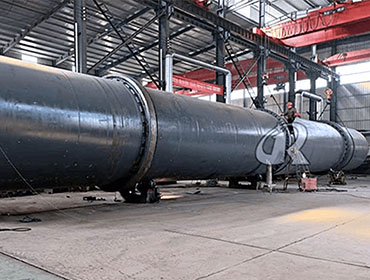

Biomass  Rotary Dryer - 1

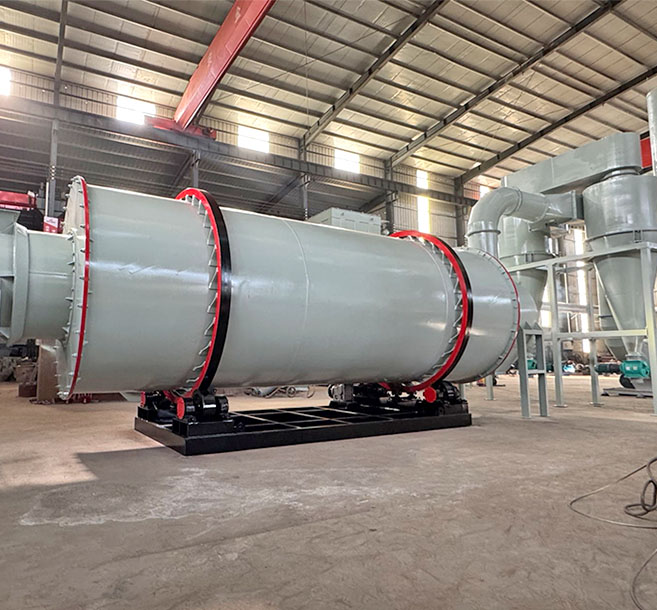

Biomass  Rotary Dryer - 2

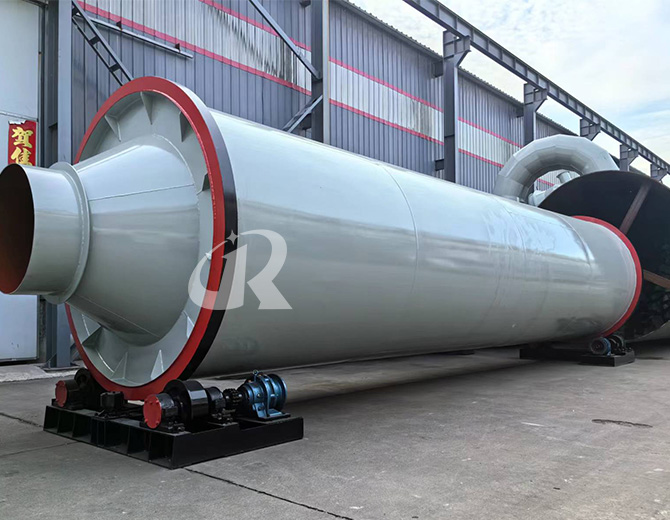

Biomass  Rotary Dryer - 3
  • Output:1-10T/H
  • Output moisture:15%(adjustable)
  • Input moisture:50-60%
  • Power:3-50kw
Online Chat Get Quote

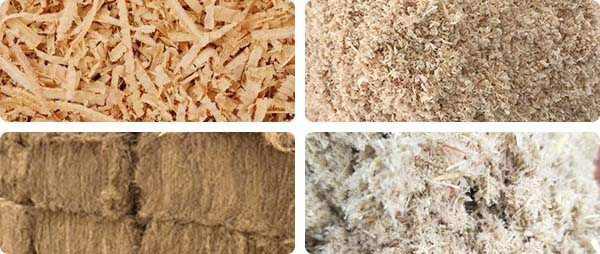

Applicable Material

Biomass fuel dryer is suitable for wood chips, sawdust, bamboo chips,Corn Cob, wood chips, shavings, barley straw.After crushing, drying and granulating, biomass can be turned into biomass fuel, which is a clean energy source that can be directly burned and used. It has the advantages of high calorific value, cleanliness, no pollution, and high added value.

Raw Material Applicable Material
Raw Material
Raw Material

In most cases, biomass (bark, wood chips, sawdust) has to be dried before being used in pelleting, briquetting, incineration, and gasification.
By reducing the water content, the calorific value increases from 2 kWh/kg to approximately 4.5 kWh/kg. This cuts the transport and storage costs and creates the ideal conditions for direct firing or optimum pelletizing properties, both for industrial and for high-grade wood pellets. As a result of the drying process, less fuel is required to generate energy, which also reduces the emissions caused by the firing process.
There are several reasons why biomass needs to be dried:
1. Increase energy density: The moisture content in biomass is high, and drying can remove the moisture, thereby increasing the energy density of biomass and making it easier to store and transport.
2. Improve combustion efficiency: The moisture in biomass will reduce combustion efficiency, and drying can remove the moisture, thereby improving combustion efficiency and reducing energy waste.
3. Reduce pollution emissions: The moisture in biomass will produce a large amount of water vapor and pollutants during the combustion process. Drying can remove the moisture, thereby reducing pollution emissions.
4. Improve the quality of biomass: Drying can remove impurities and harmful substances from biomass, thereby improving the quality of biomass and making it more suitable for energy production and other uses.

Get a quote

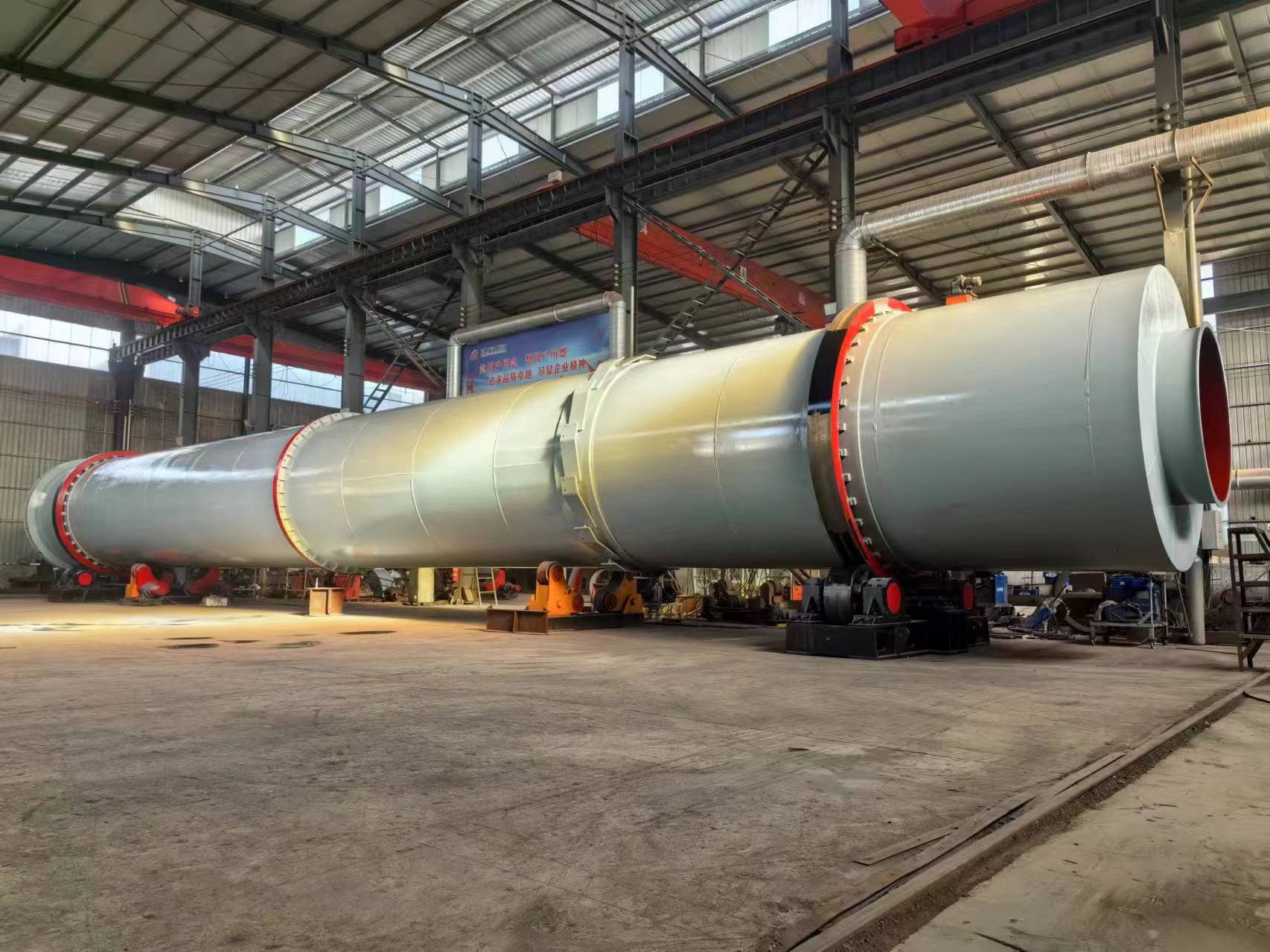

Dryer Introduction

Dryer Introduction

1.The dryer barrel is made of manganese steel, which has the characteristics of high hardness and high toughness; and its wear resistance is higher than other materials.
2.The reasonable structural design of the supporting wheel and the diversified lubrication methods make the supporting wheel less prone to wear and shaft breakage, shorten the replacement cycle, and extend the service life of the supporting wheel.
3.The combination of the spiral guide plate and the new lifting plate increases the fluidity and heat conduction of the material, allowing the material to enter the drying barrel and form a material curtain, which is more adaptable to the moisture and viscosity of the material.
4.The dryer system has good sealing performance,Inlet and outlet head adopts special seal to effectively reduce heat loss.
5.Equipped with an open flame blocking device to prevent materials from burning and causing fire.
6.We accept customization of dryers made of different materials, such as carbon steel, stainless steel, special alloys, etc. Selection of dryer base, dust removal equipment, feeding and discharging equipment, and heat source equipment.
7.This dryer is suitable for a variety of heat sources:Fuel Oil、 Natural Gas/Propane、 Waste Heat、wood、coal、biomass pellets、electricity etc.
8.Provide product quality assurance, CE IOS certification, quality and price can be compared with other manufacturers.

Heat Source

Heat Source

There are many choices for the heat source of dryers, and the common ones are as follows:

  1. Coal-fired heat source: The material is heated by the heat energy generated by burning coal. This method is cheaper, but requires attention to environmental issues.
  2. Fuel heat source: Use fuel as fuel, such as heavy oil, diesel, etc., to heat the material with the heat generated. This method heats quickly, but the cost is relatively high.
  3. Natural gas heat source: Use natural gas as fuel to heat the material through the heat energy generated by combustion. This method is environmentally friendly and has high heating efficiency, but it requires a natural gas supply.
  4. Electric heating source: The material is heated by the heat energy generated by the electric heating element. This method is environmentally friendly and easy to control, but the energy consumption is relatively high.
  5. Biomass heat source: Use biomass fuel, such as wood chips, straw, etc., as fuel to heat the material. This method is environmentally friendly and low-cost, but requires a supply of biomass fuel.

When choosing the heat source for a dryer, you need to comprehensively consider factors such as cost, environmental protection, heating efficiency, etc., and make a selection based on the actual situation. We are a professional biomass drying manufacturer. We recommend the most cost-effective heat source for you based on your local heat source conditions.

Get a quote


Sawdust Dryer

input moisture:50-60%
output moisture:15%(adjust)

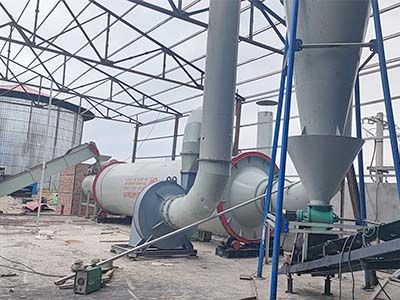

It consists of a belt feeder, a drum screen, a hot air stove, a cyclone collector, and a control system. The Sawdust enter the drum screen through the belt feeder for screening. The appropriate Sawdust enter the inside of the dryer, and the debris is removed from the waste material of the drum screen. The Sawdust enter the inside of the dryer through the spiral forced feeder and are dried. The dried Sawdust are discharged from the cyclone collector.It has the characteristics of reliable operation, high work efficiency, high thermal efficiency, simple operation, energy saving etc. Greatly meet customers' production needs

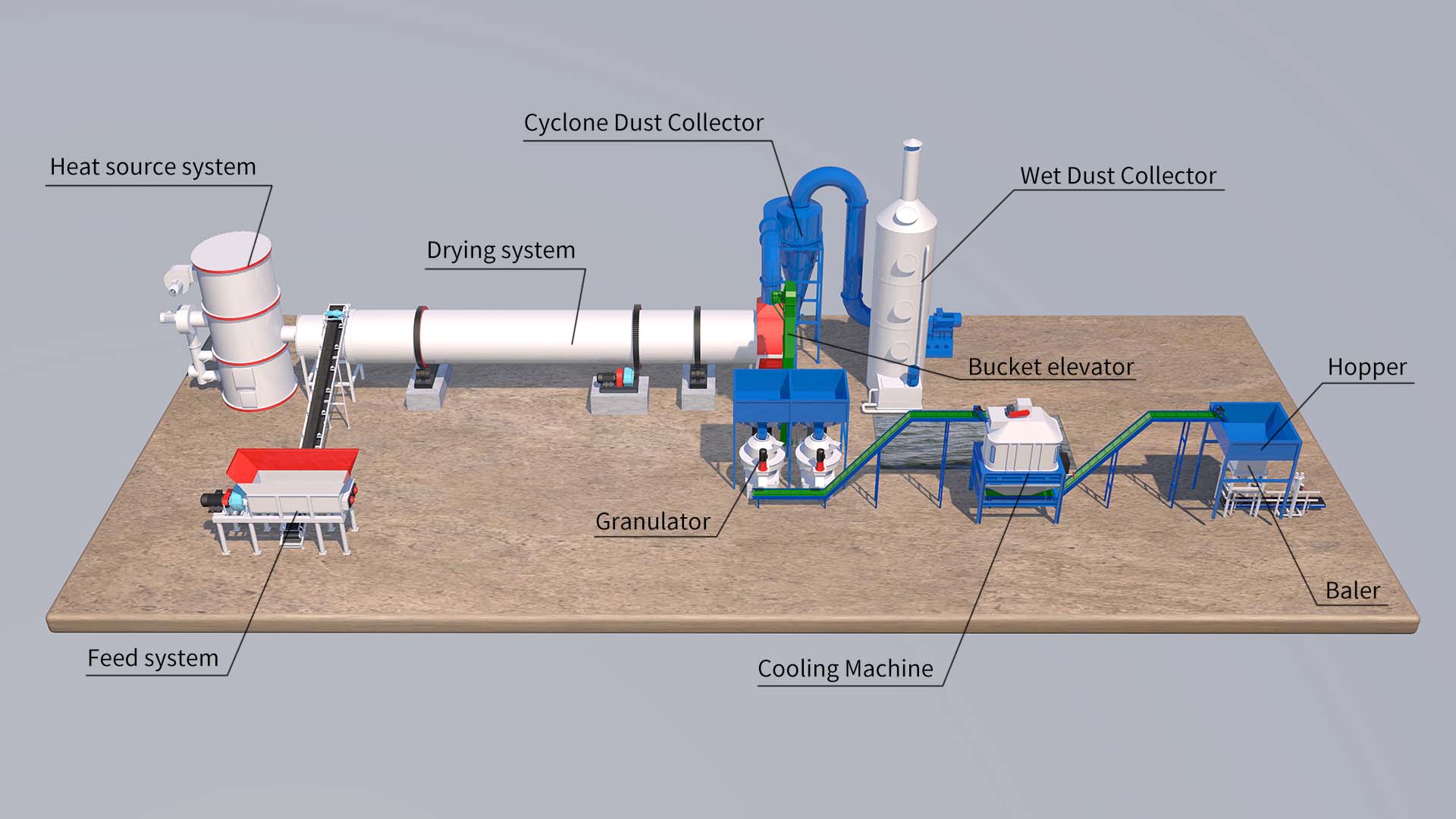

Flow chart

Flow chart

1. During the drying process of the biomass dryer, the biomass raw materials are crushed into small pieces of materials. The forklift adds the materials to the silo, and then the belt conveyor evenly sends the materials to the dryer for drying. .
2. When the material is turned by the lifting plate (even distribution) in the drum dryer, it is evenly dispersed and fully contacted with the hot air, which accelerates the drying and heat transfer efficiency of the material and evaporates water. The biomass dryer produced by our company adopts a sealed structure, which can reduce heat loss and improve thermal efficiency.
3. The dried material flows from the discharge hopper to the elevator, and then enters the transfer bin through the elevator. The material enters the granulator through the transfer bin, is pressed into biomass pellets, is cooled by the cooler and then bagged. , sent to the designated location for storage.
4. Water vapor is discharged from the dust removal chimney, and the upper part of the dust removal hopper is dust during the discharge process. After being processed by the dust removal system, environmental protection can be achieved.
5.A temperature controller can be configured to reduce air loss in the induced draft system and increase drying output. Real-time monitoring and control of material temperature to improve thermal efficiency,Prevent materials from burning.

Get a quote

Technical Parameter

Product Standard(M) Capacity(T/H) Final Moisture(%) Drying Temperature(℃) Power(KW)
0.8*8 0.5-3 15%-1% 200-300 3KW
1*10 1—5 15%-1% 200-300 5.5KW
1.2*12 2_8 15%-1% 200-300 11KW
1.6*16 6_10 15%-1% 200-300 15KW
1.8*16 8—15 15%-1% 200-300 18.5KW
2*18 10—20 15%-1% 200-300 22KW
2.2*18 12—25 15%-1% 200-300 30KW

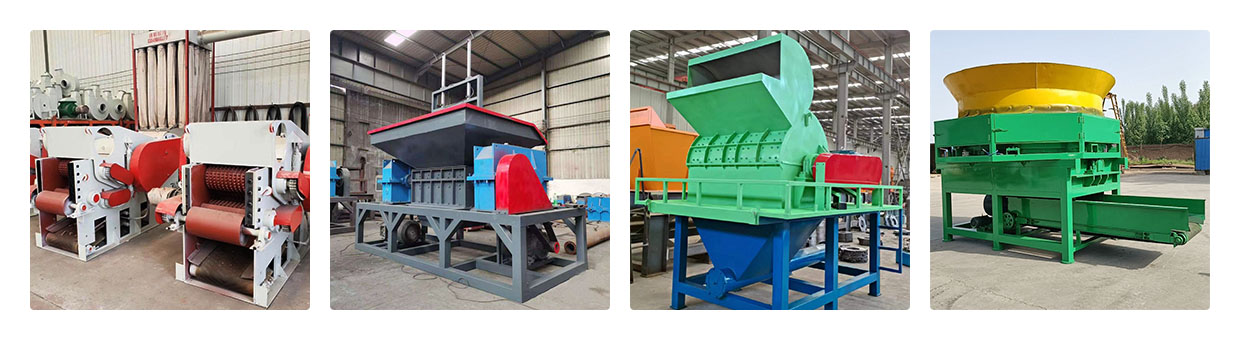

Related Products-Crusher

Related Products-Crusher

The crusher breaks the biomass raw materials into smaller particles, which are then crushed into smaller particles by the crusher and then dried by the dryer.

Get a quote

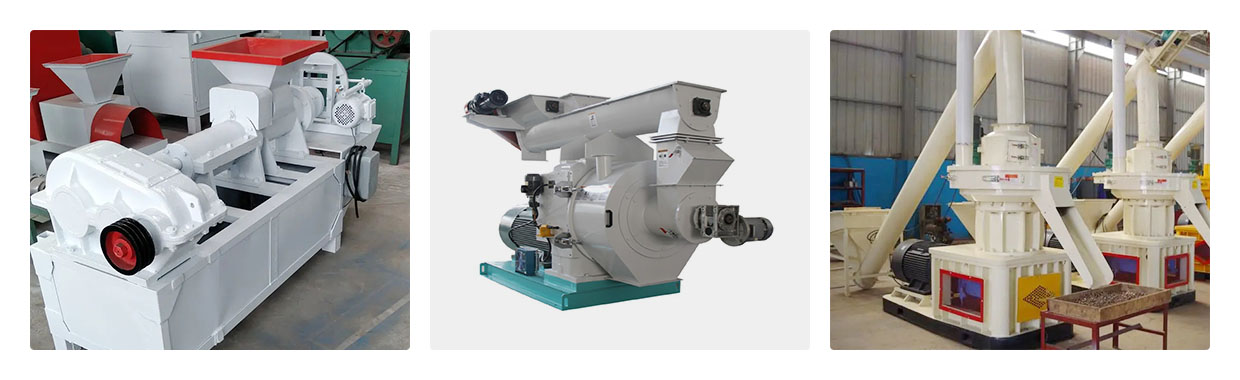

Related Products-Pellet Making and Briquette Making

Related Products-Pellet  Making and Briquette Making

After drying, the pellet compresses the pellet biomass into biomass pellet fuel with a certain shape and relatively high density.Increase calorific value: Through compression and shaping during the pelletization and briquette making processes, the biomass raw materials become denser and their calorific value is increased.
Easy to transport and store: The biomass fuel after pelletization and briquette making has better stability and durability, making it easy to transport and store.
Improve combustion efficiency: Biomass fuel after pelletization and briquette making has better combustion efficiency and thermal efficiency when burned, reducing energy waste.
Reduce environmental pollution: The granulation and briquette making processes can reduce moisture and impurities in biomass raw materials, reduce pollutant emissions during combustion, and are beneficial to environmental protection.
