Sludge dryer is suitable for drying various sludges with high viscosity. It can dehydrate and dry wet sludge containing about 85% into dry powder containing less than 10%. The sludge dryer system is widely used in drying activated sludge, sewage sludge, petrochemical sludge, papermaking sludge, printing and dyeing sludge, leather sludge, electroplating sludge, municipal sludge, biological fermentation residues and other sludges and various high-humidity materials such as dregs.
- Capacity：0.5-100t/h
- Power：3-185KW
- Input moisture：40%
- Output moisture：10%(adjustable)
Product Introduction

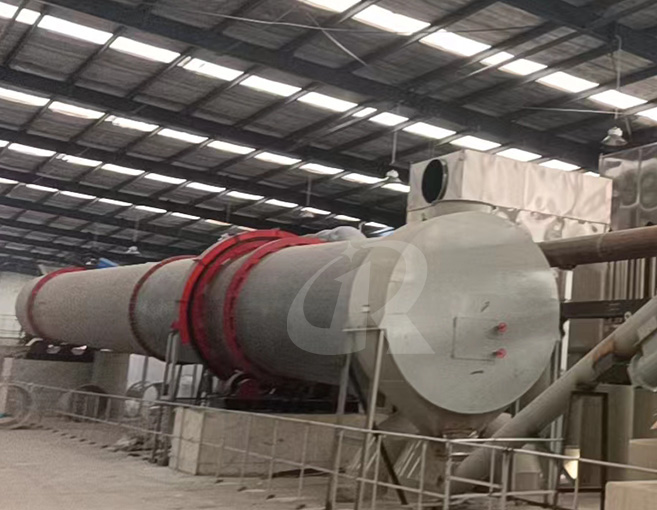

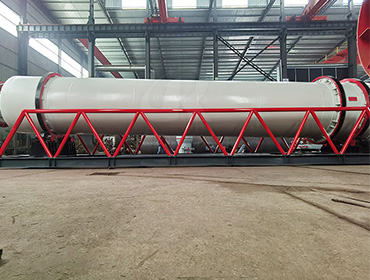

Sludge dryer is suitable for drying various sludges with high viscosity. It can dehydrate and dry wet sludge containing about 85% into dry powder containing less than 10%. The sludge dryer system is widely used in drying activated sludge, sewage sludge, petrochemical sludge, papermaking sludge, printing and dyeing sludge, leather sludge, electroplating sludge, municipal sludge, biological fermentation residues and other sludges and various high-humidity materials such as dregs.
Applicable Material
The sludge dryer is suitable for drying various sludges with high viscosity. It can dehydrate and dry wet sludge containing about 85% into dry powder containing less than 10%.
Sludge, Tailings mud,wastewater sludge dryer,sewage sludge,industrial sludge dryer,metal sludge drying,paper mill sludge,dyeing/textile sludge,tannery sludge,petroleum/crude Oil sludge,chemical sludge,active sludge.Municipal sludge drying, biological fermentation sludge and other sludge and various high-humidity materials such as dregs
Product Features
- 01
-
High degree of continuous automation
The industrialization, continuity and automation of sludge drying have been realized by using a new type of non-power crushing device.
- 02
-
Upgraded version of internal structure, large processing capacity
The new combined lifting plate has a large lifting angle and good material spreading. It can adjust the residence time of the sludge in the dryer according to the different drying areas of the sludge in the dryer, break up the sludge to prevent it from sticking together, and realize the accelerated drying, constant speed drying and reduced speed drying of the sludge in the dryer, thereby greatly increasing the water evaporation rate and intensity.
- 03
-
Energy saving, environmental protection and high efficiency
Enhanced dust removal device, a variety of heat sources to meet the environmental requirements of different areas.
- 04
-
Easy to control and flexible to operate
The moisture content of the material during drying can be easily controlled, the operation is highly flexible, and a larger fluctuation range of the product flow rate is allowed.

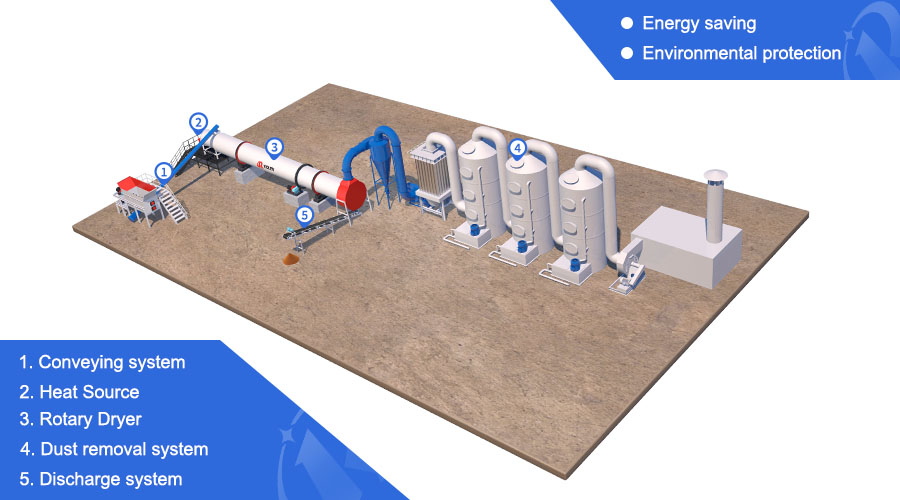

Working Principle
1.Sludge dryer has a certain viscosity. During the drying process, when the sludge enters the dryer and then enters the following working area: guide area, cleaning area, inclined lifting plate area, discharge area.
2.Wet sludge into the guide material area and hot air touched after evaporation of a large amount of water, then into the cleaning area. The lifting plate make the material form curtain state, cleaning area is provided with a cleaning device, which can quickly clean off the sludge bonding cylinder wall. In this process, it can also be broken pellet agglomeration, increasing the heat exchange area and improving the drying rate.
3.After drying the finished product moisture standard, it will into the final discharge area. The material rolls to the discharge port to complete the whole drying process.
4.A variety of heat source equipment, you can choose the most suitable one according to customer conditions,The system is equipped with a PLC system and a video monitoring system, with a high degree of automation and simple operation.
5.Provide product quality assurance, with CE IOS certification
Technical Parameter
| product standard（m) | Capacity（t/h) | Feed moisture（%） | Final Moisture(%) | Power(KW) |
|---|---|---|---|---|
| 0.8*8 | 0.5-3 | 50-30% |
15%-1% | 3KW |
| 1*10 | 1-5 | 15%-1% | 5.5KW | |
| 1.2*12 | 2-8 | 15%-1% | 11KW | |
| 1.6*16 | 6-10 | 15%-1% | 15KW | |
| 1.8*16 | 8-15 | 15%-1% | 18.5KW | |
| 2*18 | 10-20 | 15%-1% | 22KW | |
| 2.2*18 | 12-25 | 15%-1% | 30KW | |
| 2.4*22 | 15-30 | 15%-1% | 45KW | |
| 2.6*24 | 18-35 | 15%-1% | 55KW | |
| 2.8*26 | 20-40 | 15%-1% | 75KW | |
| 3*28 | 25-50 | 15%-1% | 90KW | |
| 3.2*28 | 30-60 | 15%-1% | 110KW | |
| 3.4*30 | 35-70 | 15%-1% | 132KW | |
| 3.6*32 | 40-80 | 15%-1% | 160KW | |
| 3.8*32 | 50-100 | 15%-1% | 185KW |
