Small Rotary Dryer be widely for drying coffee bean ,chili ,bean curd residue,chinese medicinal residue,distiller's grains,melon seeds, peanuts, cashews, almonds, chestnuts, hazelnuts, pine nuts, walnuts,distiller's grains, vinegar grains and other fields;
- Capacity：0.5-5t/h
- Power：1.5-15kw
- Input moisture：60%
- Output moisture：adjustable
Product Introduction
Small Rotary Dryer be widely for drying coffee bean ,chili ,bean curd residue,chinese medicinal residue,distiller's grains,melon seeds, peanuts, cashews, almonds, chestnuts, hazelnuts, pine nuts, walnuts,distiller's grains, vinegar grains and other fields;
Applicable Material
Rotary Dryer
Range of Application: Leisure food industry: melon seeds, peanuts, cashews, almonds, chestnuts, hazelnuts, pine nuts, walnuts, etc Miscellaneous grain processing industry: corn, sorghum, rice, glutinous rice, barley, wheat, tartary buckwheat, mung beans, soybeans, red beans, highland barley, flour, etc. Oil pressing industry: sesame, rapeseed, soybean, peanut, etc. Condiment industry: pepper, Chinese prickly ash, anise, cumin. Pharmaceutical industry: baking and frying of Chinese herbal medicine with good granular fluidity. Chemical industry: drying and heating chemical raw materials. Tobacco processing industry: baking and frying. Breeding industry: drying of raw materials such as distiller's grains, bean curd dregs, straw, grass, fermented feed and animal excrement. Construction industry: sand, river sand, river mud, sludge, kaolin, gypsum, coal mud and other building materials are dehydrated and dried.
Product Features
- 01
-
Wide range of materials
melon seeds, peanuts, cashews, almonds, chestnuts, hazelnuts, pine nuts.
- 02
-
High thermal efficiency
Using hot air as drying medium and adopting circulating drying process, the material receives uniform and sufficient heat and precipitation and has good quality after drying.
- 03
-
Easy to use
Can automatically control the working process, automatic stop, simple operation, labor saving, greatly reduce labor costs.
- 04
-
Low running cost
The equipment has high operation rate, low operating cost and adopts supporting wheel drive, which basically requires no maintenance.
Working Principle

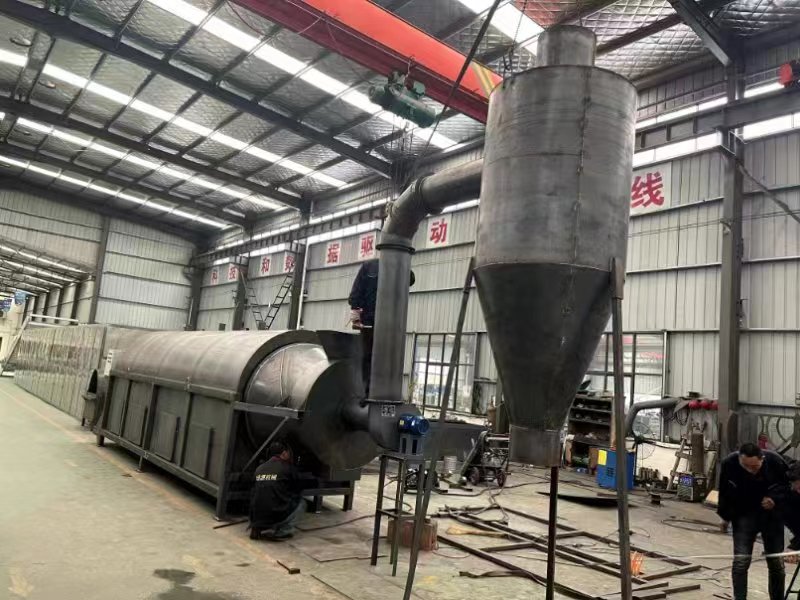

Small Rotary Dryer is mainly composed of heating source, conveying machine, feeding machine, rotary dryer, induced draft fan, unloading device and distribution cabinet. Wet material is added into the dryer. The material moves up and down in the drum where the lifting plates are evenly distributed, and the materials are evenly dispersed in the dryer and in full touch with the hot air, which accelerate the drying heat and mass transfer. After drying, the materials are discharged from the discharge port.
Technical Parameter
Model | Drum size（mm） | Power(KW) | Capacity(Kg/h) | Exhaust fan(kw) | Dehumidifier(kw) | The chain(piece) |
| KLF-200 | 800*1800 | 1.5KW | 200 | 0.37 | 0.37 | 12 |
| KLF-300 | 800*2600 | 2.2KW | 300 | 0.37 | 0.37 | 18 |
| KLF-500 | 1000*2800 | 3.0KW | 500 | 0.55 | 0.37 | 24 |
| KLF-1000 | 1200*3400 | 4KW | 1000 | 0.75 | 0.55 | 32 |
| KLF-2000 | 1500*4400 | 7.5KW | 2000 | 1.1 | 0.75 | 50 |
| KLF-3000 | 1500*6000 | 11KW | 3000 | 2.2 | 1.1 | 75 |
| KLF-5000 | 1800*6600 | 15KW | 5000 | 3 | 1.5 | 120 |
