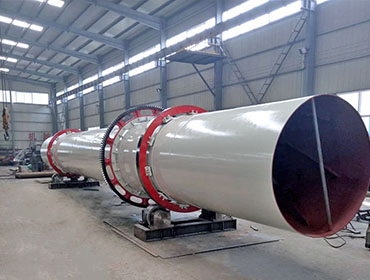

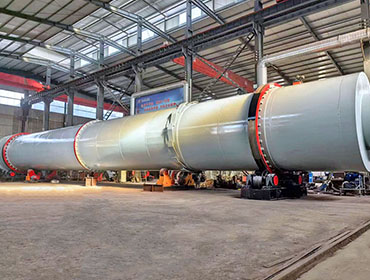

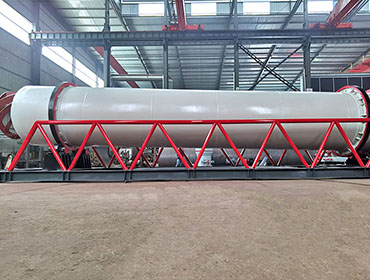

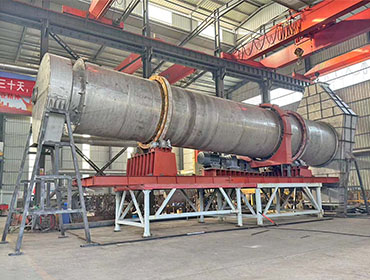

Industrial Cement Rotary Dryer is a heavy-duty thermal Cement drying equipment designed to reduce the moisture content of cement raw materials efficiently. With robust construction and high heat transfer efficiency, it is the cornerstone of modern cement manufacturing plants. Our rotary cement dryer features a simple structure, reliable operation, and low maintenance cost, making it the preferred choice for plant managers looking to maximize uptime.
Our cement dryer is widely used in building materials, metallurgy, chemical industry, and mineral processing. It is specifically designed to handle large quantities of materials such as:
Cement clinker and raw materials
Slag, fly ash, and limestone
Clay, coal slurry, and mineral powder
Whether you are setting up a new cement production line or upgrading your existing industrial drying system, this equipment ensures optimal moisture control and stable output.
The cement rotary dryer operates on a simple yet effective principle:
Feed: Wet material is fed into the inclined drying cylinder via a belt conveyor or screw feeder.
Heat Exchange: As the cylinder rotates, internal lifting plates lift the material and disperse it evenly. Hot air (from a coal burner, gas burner, or biomass furnace) flows through the cylinder, fully contacting the cascading material for rapid moisture evaporation.
Discharge: After the drying process, the material is discharged from the lower end, while the dust-laden air passes through a dust collector (cyclone or bag filter) before being released into the atmosphere, ensuring environmental compliance.
| Model | Shell Specifications | Capacity (t/h) | Initial Moisture | Final Moisture | Inlet Temperature | Main Motor Power (kW) | Weight (t) |
|---|---|---|---|---|---|---|---|
| Φ1.2×10m | Φ1.2×10m | 2.5 – 4.5 | ≤20% | ≤1% | 600–800°C | 11 | 13 |
| Φ1.5×12m | Φ1.5×12m | 5 – 8 | ≤20% | ≤1% | 600–800°C | 15 | 19 |
| Φ1.8×14m | Φ1.8×14m | 8 – 12 | ≤20% | ≤1% | 600–800°C | 22 | 27 |
| Φ2.0×16m | Φ2.0×16m | 12 – 18 | ≤20% | ≤1% | 600–800°C | 30 | 35 |
| Φ2.2×18m | Φ2.2×18m | 18 – 24 | ≤20% | ≤1% | 600–800°C | 45 | 45 |
| Φ2.4×20m | Φ2.4×20m | 24 – 32 | ≤20% | ≤1% | 600–800°C | 55 | 58 |
| Φ2.8×24m | Φ2.8×24m | 35 – 45 | ≤20% | ≤1% | 600–800°C | 75 | 85 |
OEM Service: We provide custom designs based on your specific material characteristics and site conditions.
Global Installation: Our technical team offers on-site installation guidance and operator training.
Spare Parts Supply: 24/7 availability of original spare parts to minimize downtime.
Contact us today to get the latest price of cement dryer, technical drawings, and a customized solution for your plant. Let our experts help you choose the right industrial rotary dryer for your specific needs.
