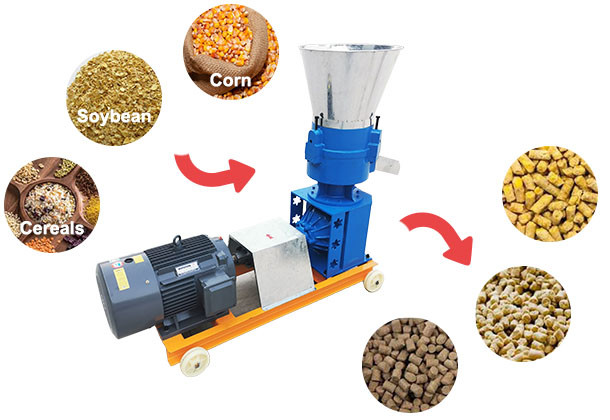

Animal Feed Pellet Making Machine Mill ,Chicken Feed Pellet Duck Mill Machine,Meat Fish Feed Pellet Mill Machine ,Cattle Feed Pellet MilI Machine, hay, straw, corn, soybeans and other grains are suitable.
- Capacity：80-1800kg/h
- power：3-37KW
- Output size：2-8MM
Product Introduction
Animal Feed Pellet Making Machine Mill ,Chicken Feed Pellet Duck Mill Machine,Meat Fish Feed Pellet Mill Machine ,Cattle Feed Pellet MilI Machine, hay, straw, corn, soybeans and other grains are suitable.
Applicable Material
Animal Feed Pellet Mill Machine
Animal Feed Pellet Making Mill Machine, Chicken Feed Pellet Duck Mill Machine, Meat Fish Feed Pellet Mill Machine, Cattle Feed Pellet MilI Machine, Hay, Straw.
Product Features
- 01
-
Easy to use
The enlarged feeding port design makes feeding more convenient and high working efficiency. The baffle design of the discharge port can effectively prevent the feed from scattering. The machine is equipped with wheels for easy movement.
- 02
-
Adjustable unloading speed
After keeping the balance of the nuts on both sides, the discharge speed can be adjusted by adjusting the distance between the pressing roller and the grinding disc.
- 03
-
Not easy to damage, low maintenance cost
The pressure rollers and grinding discs are made of high-quality manganese steel after high temperature quenching treatment, with high wear resistance. The surface of the fuselage is painted to resist corrosion.
- 04
-
Various particle sizes of finished products
The feed processed by the machine is smooth and has moderate hardness so the nutrition can be contained very well.We have different size of disc. 2mm,3mm,4mm,5mm,6mm,8mm 10mm for you to choose.
Working Principle
The material enters the pellet press from above, then falls on the rotating drum and mould and is pressed through the holes in the mould. The material is compressed due to pressure and friction resulting in an increase in temperature, which is cooled to form firm pellets. The whole process is determined mainly by the moisture content of the raw material. The moisture content of the raw material ranges from approximately 12% to 20%. If the moisture content is low, the pellets cannot be made with the pellet press. If the moisture content is too high, the pellets coming out of the granulator will be soft.
Technical Parameter
| Modle | Capacity(kg/h) | Power(kw) | Weight（kg） | Size（mm） |
| KLF-100 | 80-100 | 3-4 | 75 | 850*350*520 |
| KLF-150 | 100-150 | 3-4 | 80 | 850*350*570 |
| KLF-200 | 100-250 | 4.5 | 100 | 850*350*710 |
| KLF-300 | 300-400 | 7.5 | 165 | 990*430*710 |
| KLF-400 | 400-500 | 11 | 180 | 1000*440*720 |
| KLF-500 | 600-800 | 15 | 290 | 1350*500*1200 |
| KLF-600 | 800-1000 | 22 | 365 | 1360*570*1150 |
| KLF-700 | 1800 | 37 | 680 | 1550*620*1250 |
